Channel Networks - Pump Stations and Lifting Facilities

Spiral Pump Control

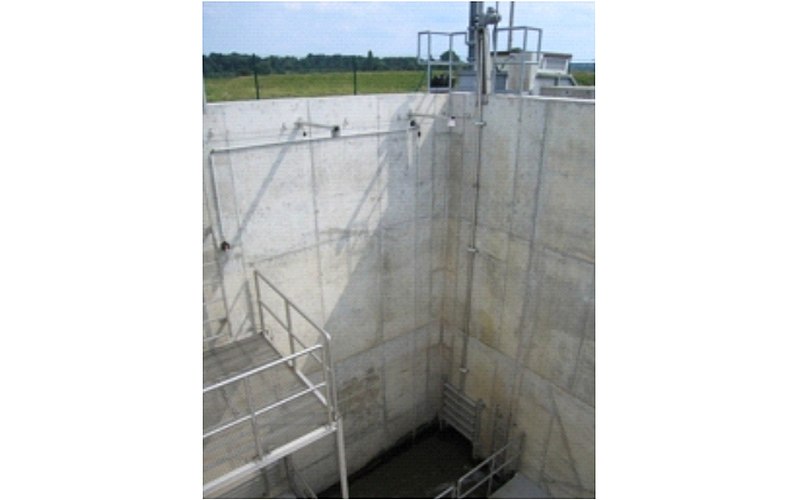

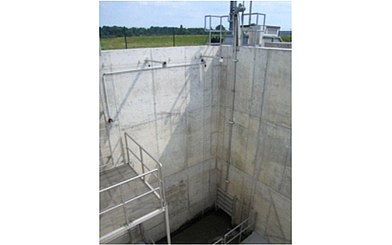

  • Wastewater lifting facility with three spiral conveyors.
  • Delivery head approx. 9.00 m

Definition of tasks

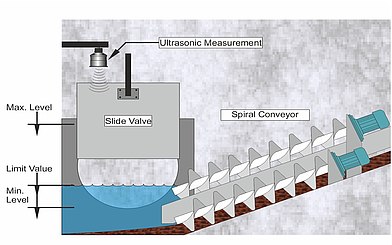

  • Non-contact level measurement for alternating control of spiral conveyors
  • Redundant
  • Panel mount enclosure unit


  • An ultrasonic measurement transmitter Type NivuMaster Ultra 5 panel mount enclosure has been installed as non-contact measurement. This unit not only serves as alternating control for the spiral conveyors, but also supplies min./max. messages
  • The redundant measurement is engaged using an error message contact.


  • Sensor installation and transmitter programming carried out by operator
  • Therefore independent of PLC programming through third party

Used products
