Flow Sensors
POA Correlation Pipe Sensor
Part No. POA-V2XXRMedium measurement range for levels up to ca. 1m
Cross correlation sensors for flow velocity and level detection in part filled and full pipes and channels. For installation in pipes

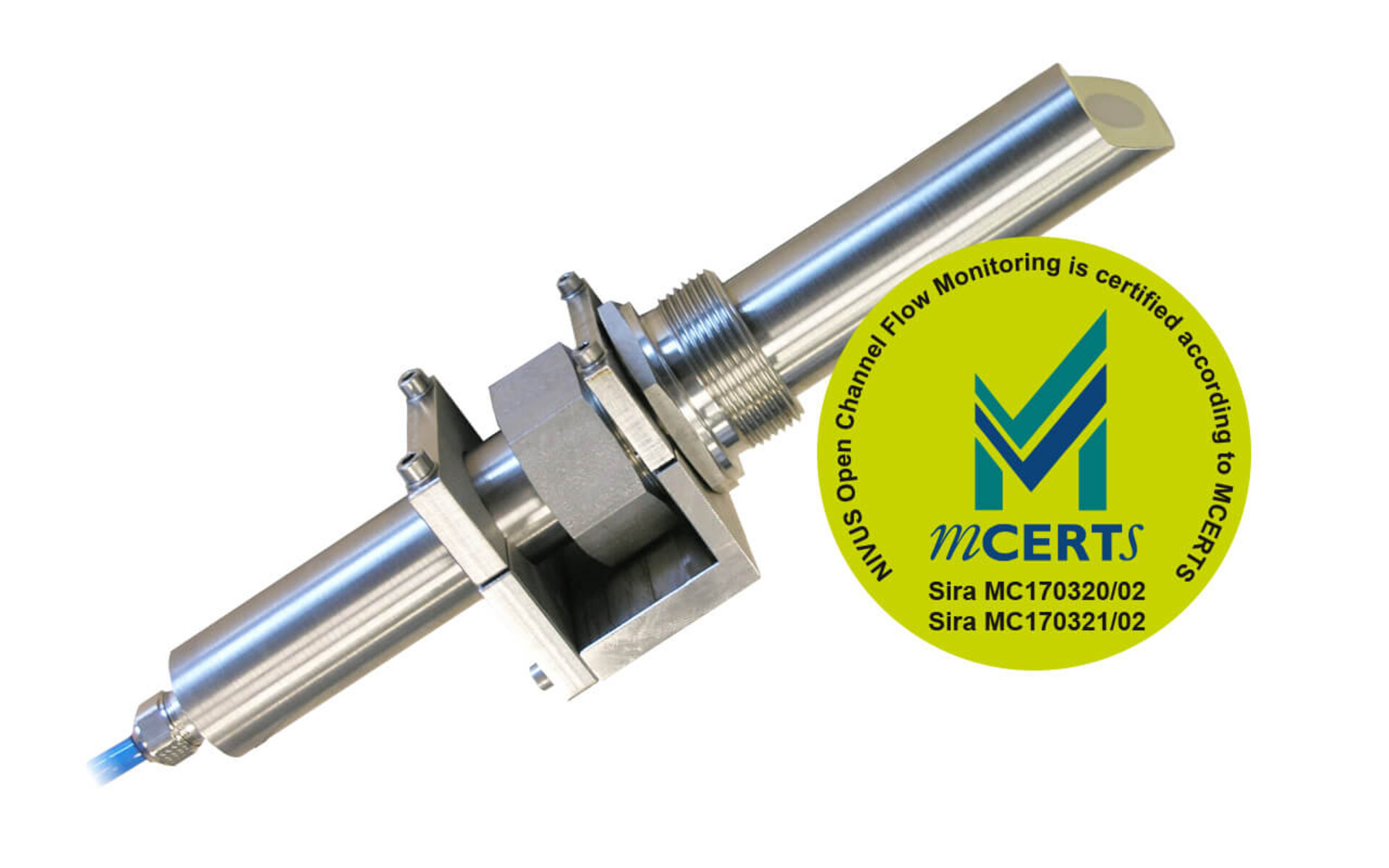

![[Translate to English:] POA-Rohrsensor für die Durchflussmessung im Abwasser](/fileadmin/_processed_/7/1/csm_Flow-SensorPOA-pipe-MCerts_95b6016a71.jpg "[Translate to English:] POA-Rohrsensor Kreuzkorrelation-Durchflussmessung im Abwasser")

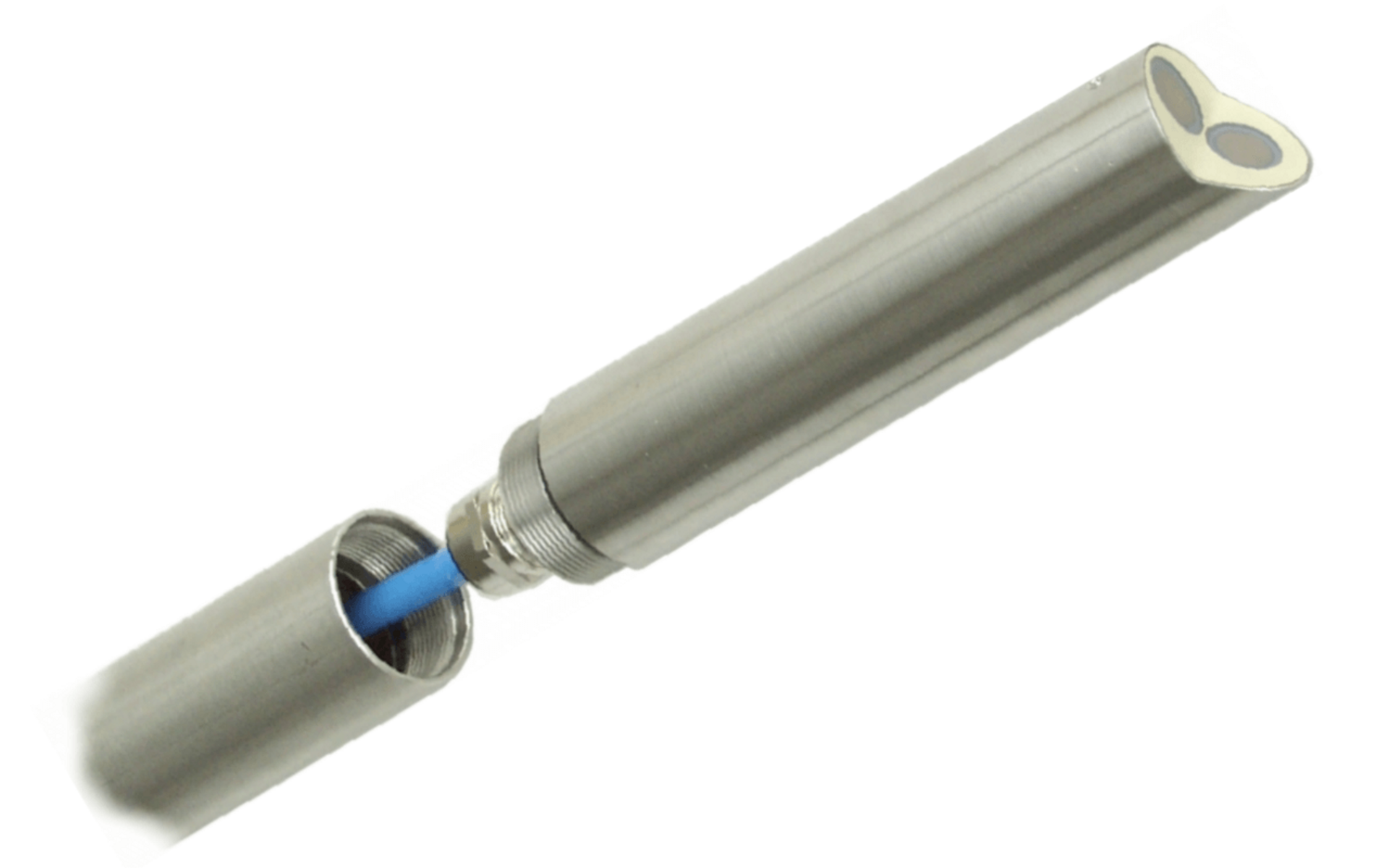

![[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit](/fileadmin/_processed_/6/1/csm_POA-Pipe-sensor-3_01_bda2d73915.png "[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit für hochgenaue Durchflussmessung")
![[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation](/fileadmin/_processed_/9/1/csm_Cross-Correlation-Priniciple-Pipe_9521e14942.png "[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation")
![[Translate to English:] Durchflussmessung - Installationsvergleich](/fileadmin/_processed_/8/0/csm_Durchflussmessung-Rohrsensor_596ae450f7.jpg "[Translate to English:] Installation Durchflussmessung - Vergleich bei DN 800")
![[Translate to English:] POA-Rohrsensor für die Durchflussmessung im Abwasser](/fileadmin/_processed_/7/1/csm_Flow-SensorPOA-pipe-MCerts_ebad9ed48b.jpg "[Translate to English:] POA-Rohrsensor Kreuzkorrelation-Durchflussmessung im Abwasser")
![[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit](/fileadmin/_processed_/6/1/csm_POA-Pipe-sensor-3_01_4d2d761f8a.png "[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit für hochgenaue Durchflussmessung")
![[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation](/fileadmin/_processed_/9/1/csm_Cross-Correlation-Priniciple-Pipe_8b0e2b98b8.png "[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation")
![[Translate to English:] Durchflussmessung - Installationsvergleich](/fileadmin/_processed_/8/0/csm_Durchflussmessung-Rohrsensor_b7a18d158d.jpg "[Translate to English:] Installation Durchflussmessung - Vergleich bei DN 800")
POA flow velocity sensors are suitable for continuous measurement of slight to heavily polluted media. The pipe-shaped sensors are designed for installation in pipes from the outside using a nozzle. Combined with transmitter types such as NivuFlow 750 and an external level measurement the result is a complete flow measurement system.
- For high-accurate flow measurement of ultrasonic cross correlation method
- Interference-free connection over long distances through digital signal transmission
- Cables can be extended without any problems using standard cables
- Absolutely stable zero point and drift-free
- Measurement in heavily polluted and abrasive media
- Easy installation without additional constructions and perfectly matched mounting accessories
- Installation under process conditions possible
- Suitable for all channel cross sections
Typical applications for POA pipe sensors
- Stormwater treatment plants: flow measurements and control of the discharge to the WWTP
- Wastewater treatment plants: intake, discharge, activated sludge tank intakes, return sludge, recirculation, surplus sludge, digester discharge and flocculant dosage
- Direct discharge control, infiltration (extraneous water) or leakage detection
- Industrial wastewater networks
- and many more
Technical Data
| General | |
|---|---|
| Quantity of scan layers recorded and computed | max. 32 |
Specifications subject to change.
Downloads
Technical Instructions | Correlation Sensors (Rev. 09)
Technical instructions for correlation sensors and external electronic box
Installation Instruction | Correlation and Doppler Sensors (Rev. 07)
Installation instruction for save installation
EC type examination certificate sensor type POA, OCL and CS2
EC type examination certificate sensor type POA incl. supplement
IECEx Certificate of Conformity "Sensors type POA, OCL and CS2"
Declaration of Conformity Ultrasonic Active Sensors POA / OCL / CS2
Ultraschall-Aktivsensoren POA / OCL / CS2
EU Declaration of Conformity | “Ex” Ultrasonic active sensors POA / OCL / CS2
