Mounting Accessories Level Sensors

Accessories for Contactless Level Sensors

Part No. ZUB0 ZMS

for easy installation of level sensors

The mounting accessories allow quick and easy level sensor installation. The solid high-quality accessories made of stainless steel 1.4571 are suitable for indoor and outdoor installation.

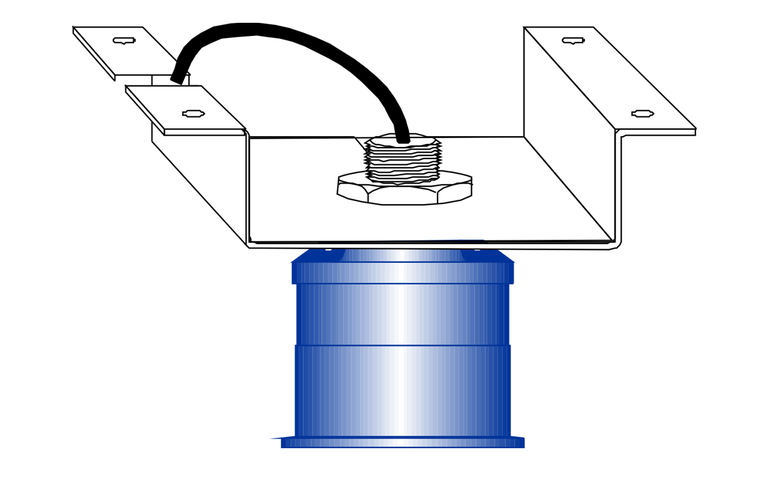

[Translate to English:] Deckenhalterung für einen Füllstandssensor. Für Sensoren der P- und i-Serie mit 1“ Gewinde.

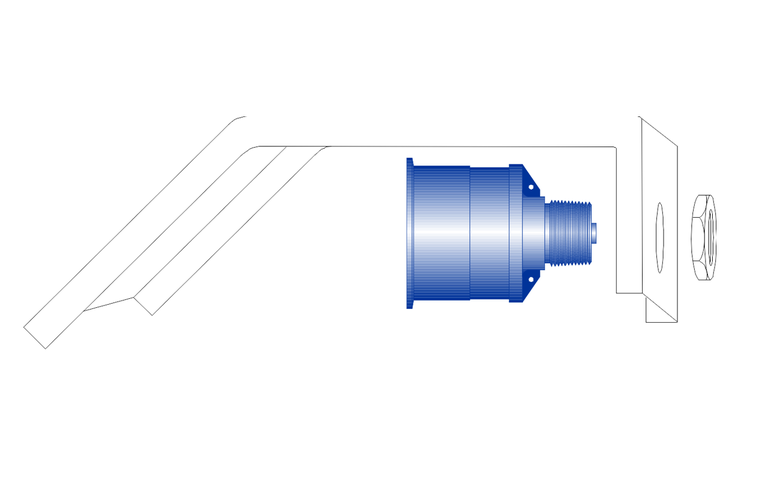

[Translate to English:] Reflektorwinkel für Sensoren, Material: Edelstahl 1.4571. Für Sensoren der P- und i-Serie mit 1“, 1,5“ und 2“ Gewinde

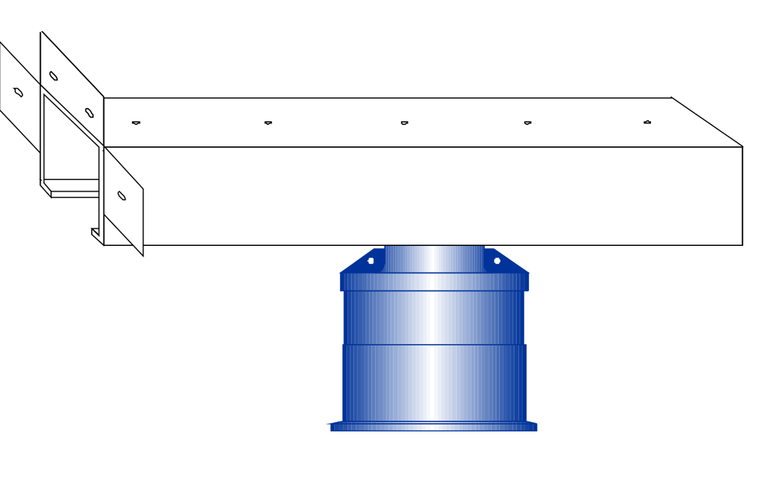

[Translate to English:] Wandmontagewinkel für Sensoren, Material: Edelstahl 1.4571. Für Sensoren der P- und i-Serie mit 1“ Gewinde

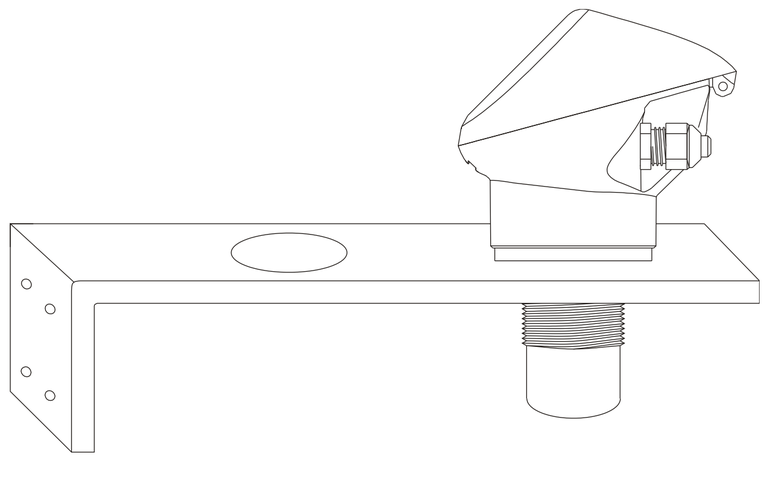

[Translate to English:] Wandmontagewinkel für NivuCompact

Easy installation of level sensors
Solid and robust construction made of stainless steel 1.4571
Includes all fastening materials

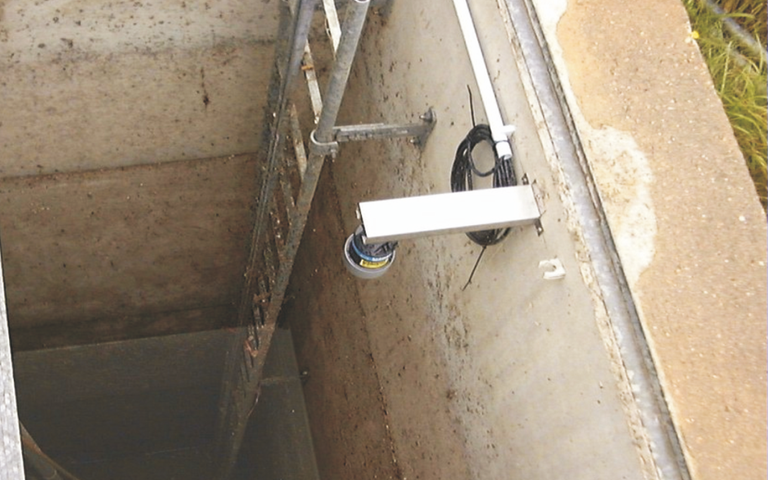

The mounting accessories allow the quick and easy installation of level sensors. The solid high-quality accessories made of stainless steel 1.4571 are suitable for indoor and outdoor installation. All accessories are supplied including the according fastening materials. The sensors can be easily installed on walls or ceilings.

Overview

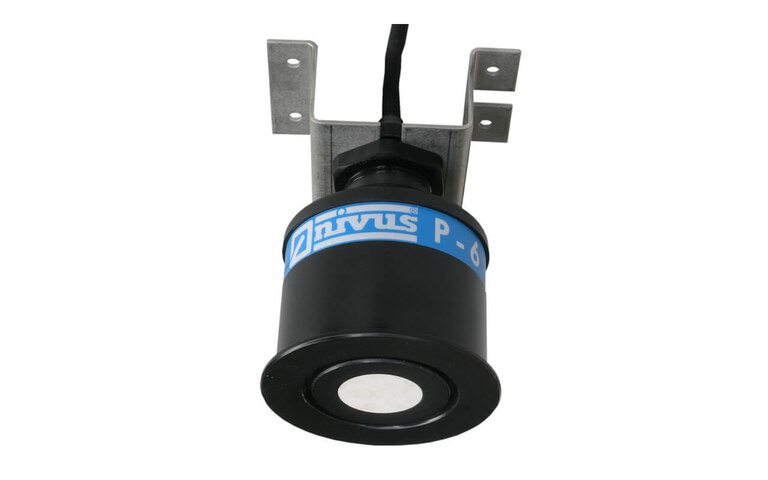

Ceiling mount

ZMS0100

for level sensors P-series and i-Series Material: stainless steel 1.4571

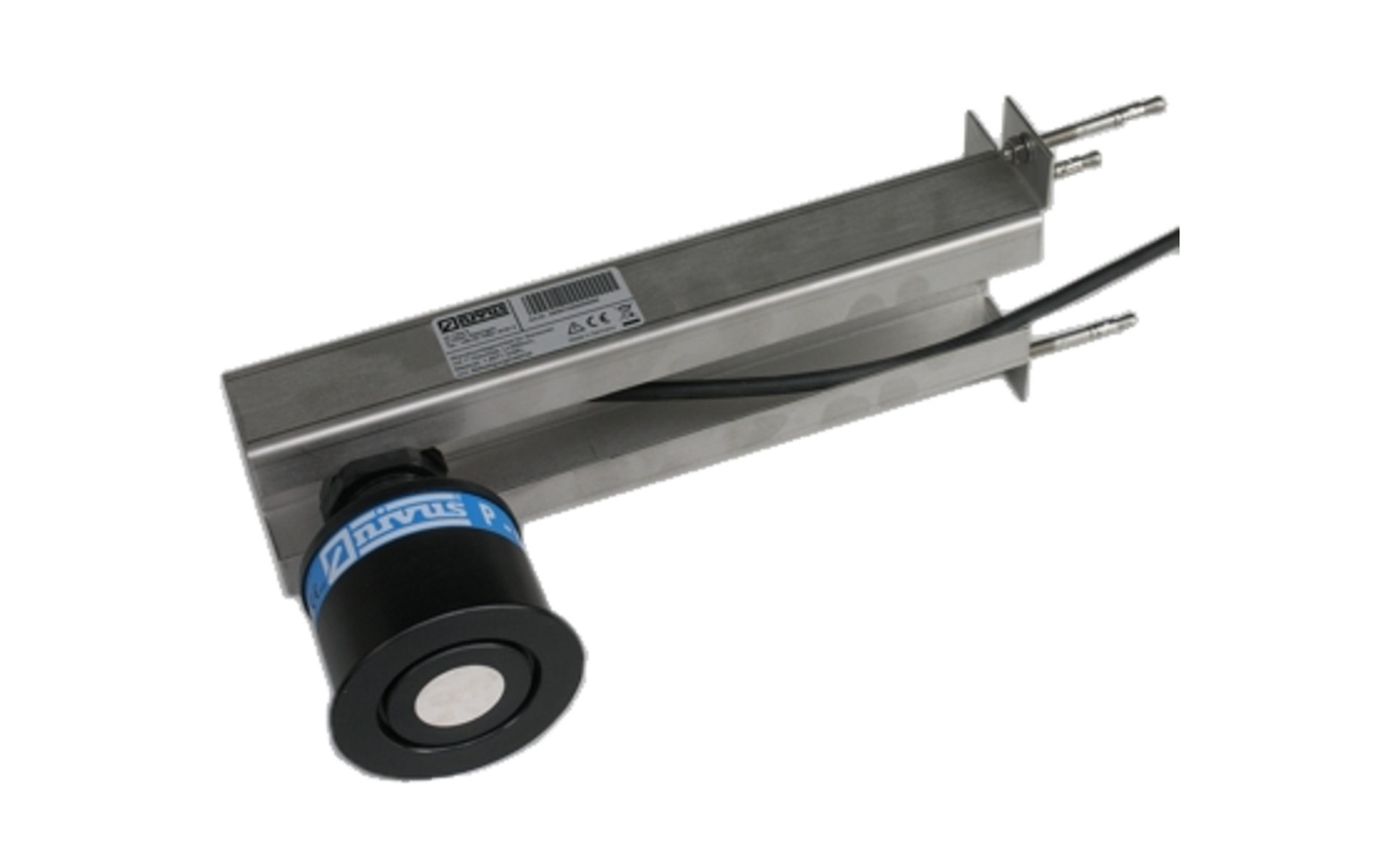

Wall mounting angle 30 cm

ZMS0102

for level sensors R-series, P-series and i-Series with 1” thread Material: stainless steel 1.4571

Wall mounting angle 60 cm

ZMS0108

for level sensors R-series, P-series and i-Series with 1” thread Material: stainless steel 1.4571

Wall mounting angle 90 cm

ZMS0109

for level sensors R-series, P-series and i-Series with 1” thread Material: stainless steel 1.4571

Wheater protective roof

ZMS0191

for level sensors R-series, P-series and i-Series with 1” thread

Wall mounting angle for compact echo sounder

ZMS0120

Thread 1 ½“ or 2“ Material: stainless steel 1.4571.Wall distance: 185 mm

Wall mounting angle for compact echo sounder

ZMS0121

Thread 1 ½“ or 2“ Material: stainless steel 1.4571.Wall distance: 332 mm or 480 mm

Wall mounting angle for compact echo sounder

ZMS0123

Thread 1 ½“ or 2“ Material: stainless steel 1.4571, Wall distance:: 450 mm, 650 mm or 805 mm

Angled reflector

ZMS0130

for level sensors R-series, P-series and i-Series with 1”, 1,5” or 2” thread Material: stainless steel 1.4571

Pendular suspension

ZMS0134

for ultrasonic level sensors with 1“ thread 500 mm Material: stainless steel

Pendular suspension

ZMS0135

For ultrasonic level sensors with ¾ “ thread 500 mm Material: stainless steel

Datenblatt Vario Montageset

Das Montageset im Baukastenprinzip

In download cart Add to download cart download file PDF 2 MB
