Odciek z wysypiska śmieci
Sieci kanalizacyjne - Pomiary odcieków
Aplikacja
- Rura DN 200 wykonana z HDPE
- Częściowo wypełniony
- Maksymalny przepływ na wylocie 1,5 l/s
- Ryzyko powstania złoża mineralnego
Zdefiniowanie problemów
- Detection of deposits from a groundwater well within a landfill site area for water balance detection
- Accurate, long-term stable and low-maintenance measurement
- Measurement shall be installed without major reconstruction measures in the proximity of an existing collector
Rozwiązania

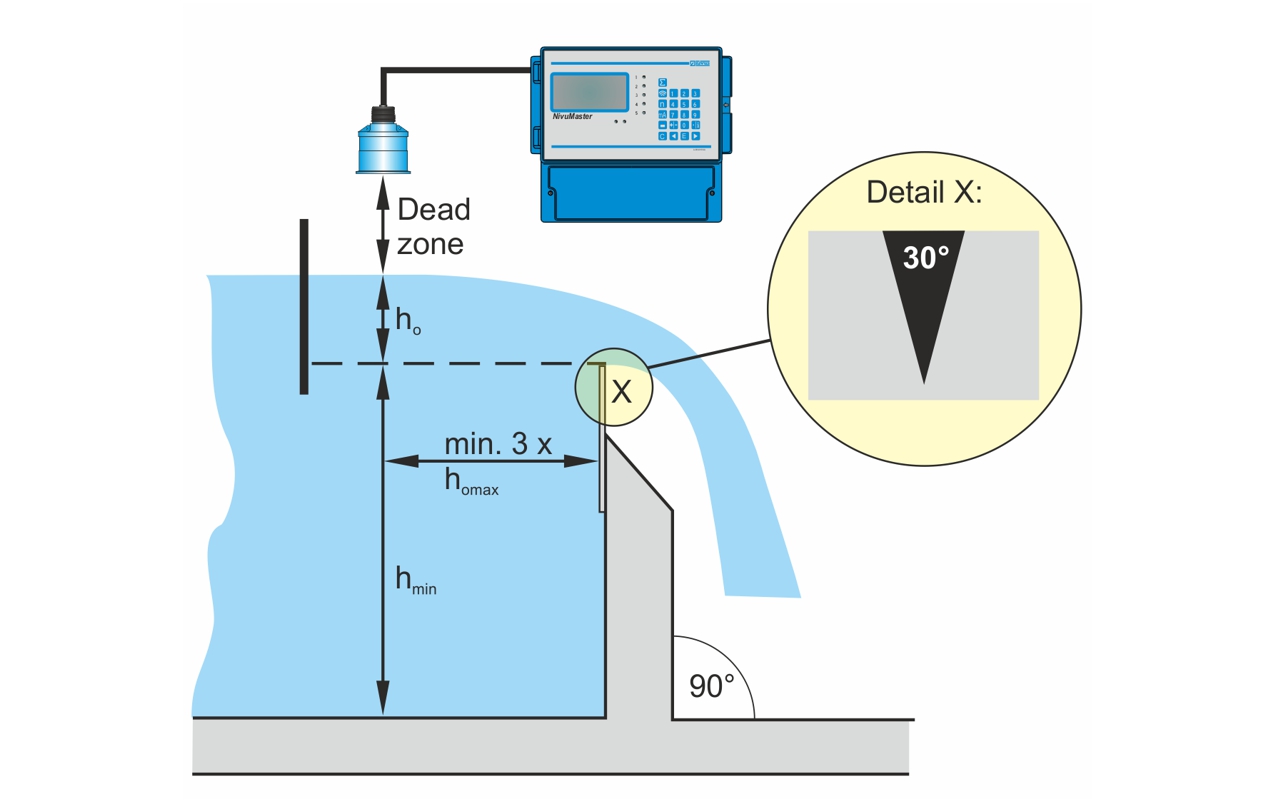

- Due to low flow volumes it was necessary to use weir measurement according to Thomson (V weir).
- The non-contact ultrasonic measurement system Type NivuMaster is used to detect overflow height.

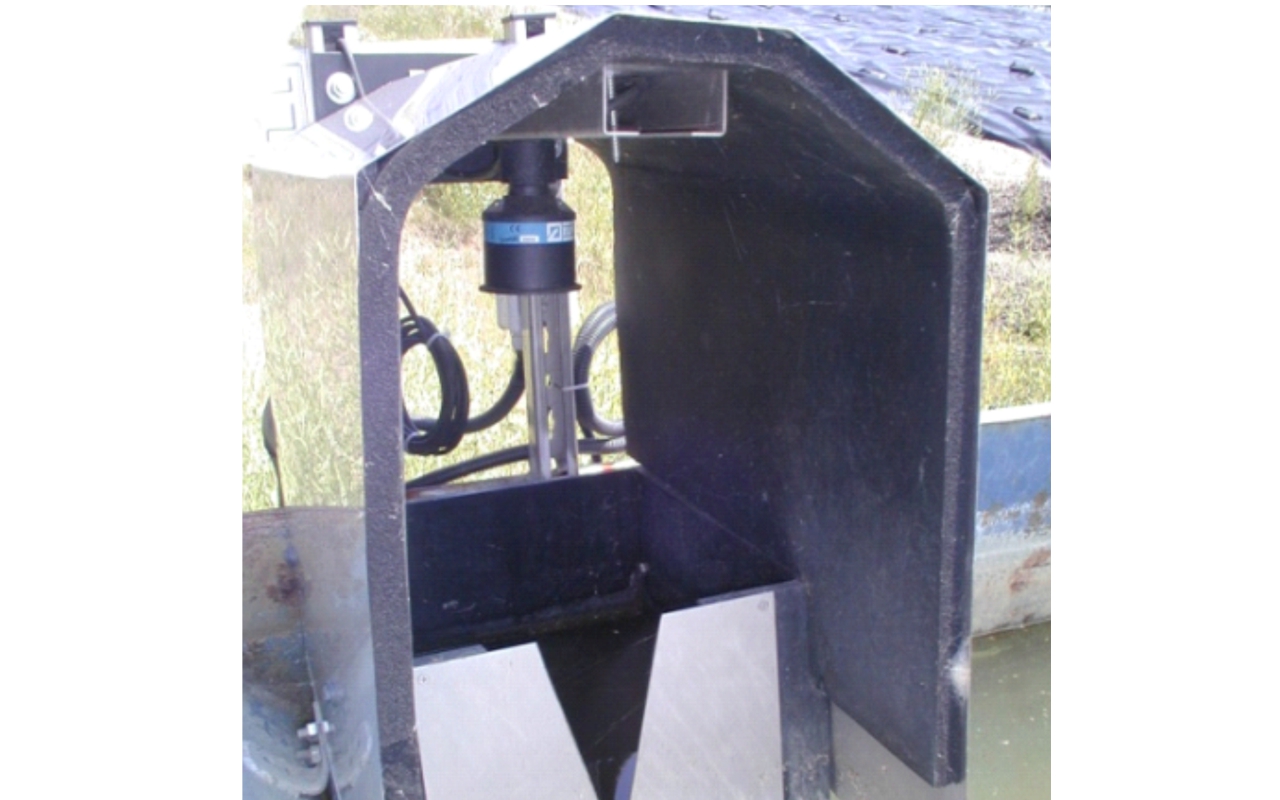

- Collector trough and weir opening have been constructed to obtain the best possible accuracy.
Korzyści
- Maintenance shall be reduced to regular visual inspections and occasional removal of incrustation building up.
- Easy adaption to possible higher flow rates through exchangeable weir plates featuring greater angles.
