Efficiency Measurement and Ex-proof GPRS Data Transmission

Channel Networks - Portable Measurements


Application

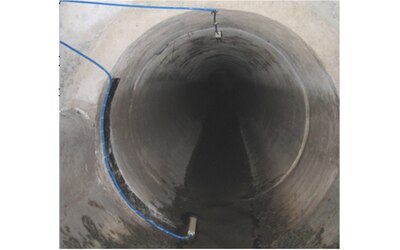

  • Concrete pipe DN 1200
  • Partially filled
  • Levels temporarily tending to zero
  • No power supply available
  • Ex Zone 1



Definition of tasks

  • Temporary installation of a flow measurement system to investigate precipitation discharge and channel capacity utilisation
  • Reliable detection of lowest levels during the night
  • Automatic data transmission and error messages/remote maintenance via GPRS

Solution

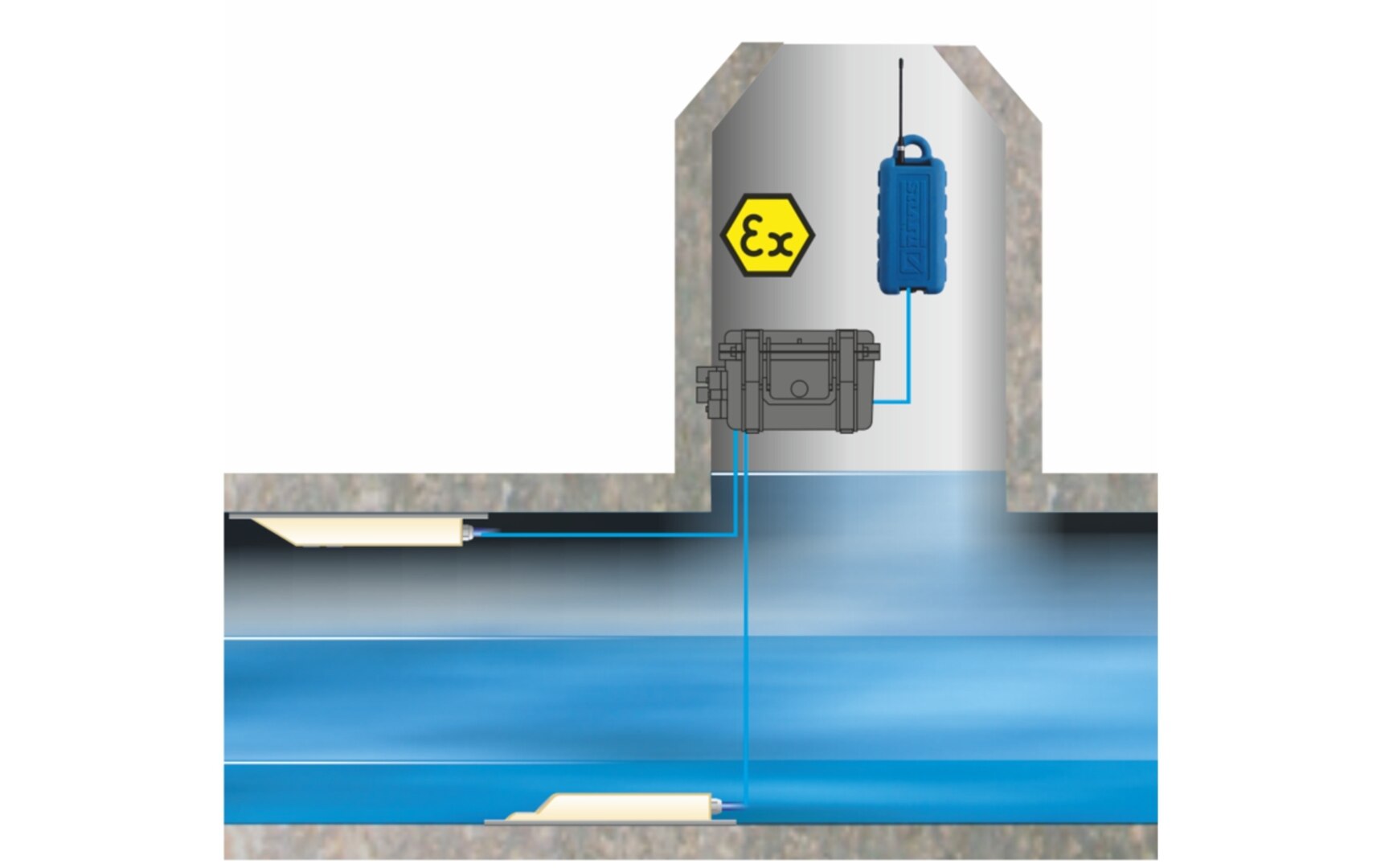

  • The portable flow measurement system PCM Pro with an Ex-proof GPRS data logger Type NivuLog Ex have been used.
  • The built-in pressure measurement cell of the flow velocity sensor allows to detect the channel overflow.
  • Using an additional air-ultrasonic sensor (LUS) ensures reliable measuring of even lowest discharge during the night.
  • Highly efficient data compression as well as the particular transmission behaviour guarantee reliable data transmission despite mas­sive channel walls and metal manhole covers.
  • The NIVUS "Device to Web" data portal allows direct access to the measurement system as well as to the connected sensors.
