Rain Gauge

Part No. RM 20X

for detection of precipitation volumes

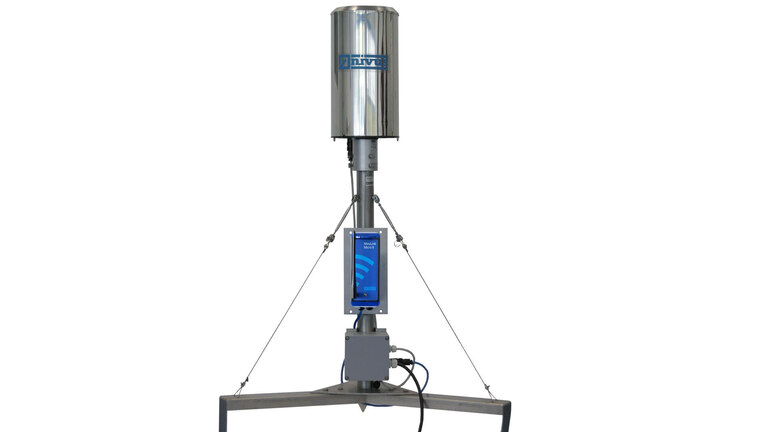

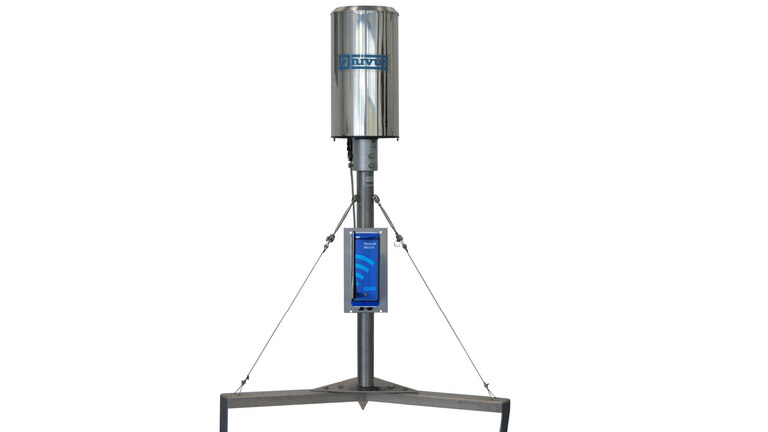

Rain gauge for detection of precipitation volumes and for mobile date transmission to the NIVUS WebPortal with comprehensive options for evaluation, verification and output of alarms

  • Extremely long battery life of up to 5 years
  • Type 202 with heating suitable also for winter operation
  • Data transmission via mobile communication to the NIVUS WebPortal with comprehensive options for evaluation through monitoring and data forwarding to alarms



The Rain Gauge detects liquid precipitation (rain) falling on the ground. The model equipped with an integrated heating detects solid precipitation (snow or hail) as well. The rain gauge body is made of stainless steel and comes with a sieve preventing the drop collector stage from pollution through foliage or bird excrements.

For operation during winter the model Type RM 202 with electronically control-led heating powered by an external power supply is available.

The measurement is based on the tipping scale principle, where a Reed switch triggers an impulse per 0.1 mm of precipitation. This pulse is passed on to an external counter or can be routed to other counting systems.
The model with integrated data logger saves the impulses corresponding to date, time and rain level. Thanks to the powerful internal rechargeable battery, this data logger operates self-sufficient and in-dependent from mains power for an extremely long period. The logger automatically logs in with the most powerful GSM network and transmits measurement values to the NIVUS WebPortal.
NIVUS WebPortal provides a variety of options for evaluation through status monitoring and data forwarding to output of alarms.





Typical Rain Gauge applications

  • Detection of rain volumes
  • Snowfall measurement
  • Determination of additional information during flow measurement campaigns and investigation of infiltration/extraneous water
Common
Capturing area 200 cm²
Capacity of tipping scale 2 cm³
Intensity max. 11 mm/min
Resolution 0.1 mm precipitation
Output accuracy at 0 - 11 mm/min ±3 %
Ambient temperature without heating 0 to 60 °C
with heating -25 to 60 °C

Weight 3,3 kg

Specifications subject to change.

Output signal 1
Length of impulse 125 ms
Impulse frequency 0 - 2 Hz
Power supply 5 - 24 V DC
Closed current (no precipitation) 50 µA
Impulse current 80 mA
Ra max. 10 kOhm (Ra at interface (Vcc = 5V))
Rv (series resist. in RG) 100 Ohm

Specifications subject to change.

Output signal 2
Length of impulse 50 ms
Impulse frequency 0 - 2 Hz
Switching power 0 - 2 Hz
Switching voltage 42 V

Specifications subject to change.

Heating (optional)
Voltage 24 V DC
Turn-on temperature 5 °C
Hysteresis 2 °C
Heating power 48,5 W

Specifications subject to change.

Power pack RMT0Z NTH01 (optional)
Primary 85 - 265 V AC
Secondary 24 V DC
Power consumption 60 W
Protection IP65

Specifications subject to change.

Data sheet Rain Gauge

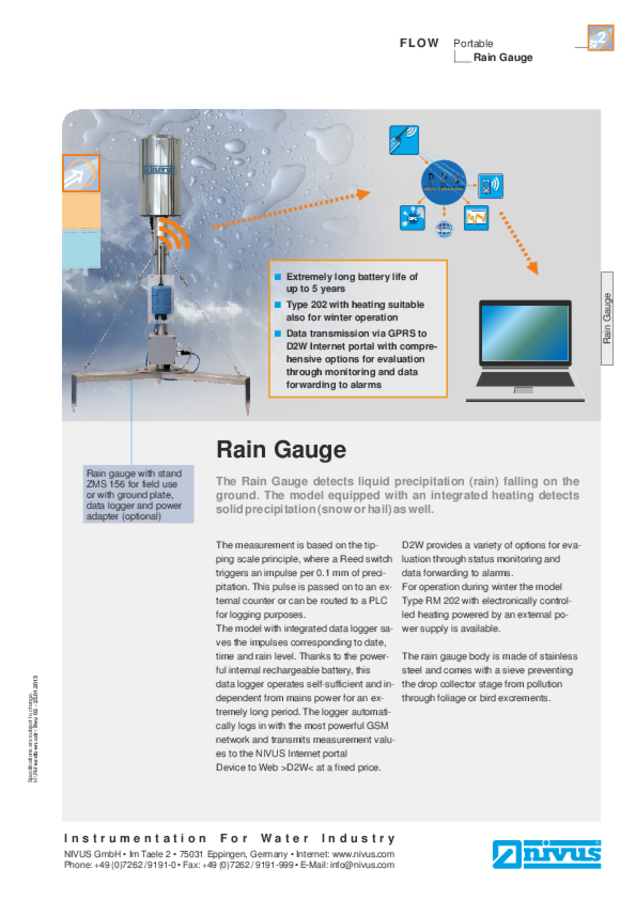

Data sheet for precipitation instrument with optional data transmission and optional heating

Instruction manual for Rain Gauge

Instruction manual for Rain Gauge measurement unit
