Flow Measurement to create a Sewage Master Plan

Channel Networks - Portable Measurements


Application

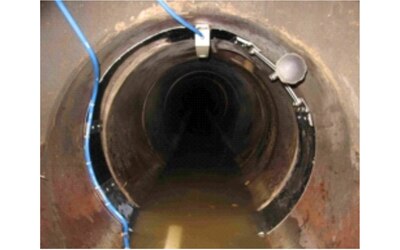

  • Concrete pipe DN 500
  • Partially filled
  • High discharge dynamics
  • Risk of sedimentation



Definition of tasks

  • Detection of precipitation, flow, level and flood covering a minimum period of 3 months to create a Sewage Master Plan
  • No main power available
  • High discharge dynamics from lowest levels up to complete flood of the channel system
  • Sound waves due to pump activities
  • ASCII a preferred data format

Solution

  • By using the portable Type PCM Pro measurement system using multiple sensors it is possible to measure over longer periods without mains power.
  • The high measurement dynamics are reliably detected by using a 1-minute measurement cycle.
  • Data storage on CF card in ASCII format.

Advantages

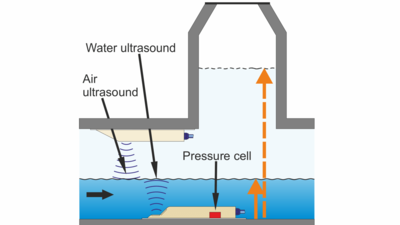

  • Accurate flow detection even with varying levels thanks to the combined use of different level sensors utilising different measurement principles.
  • Measurement results are easy to evaluate in all common applications thanks to using the standard ASCII data format.
