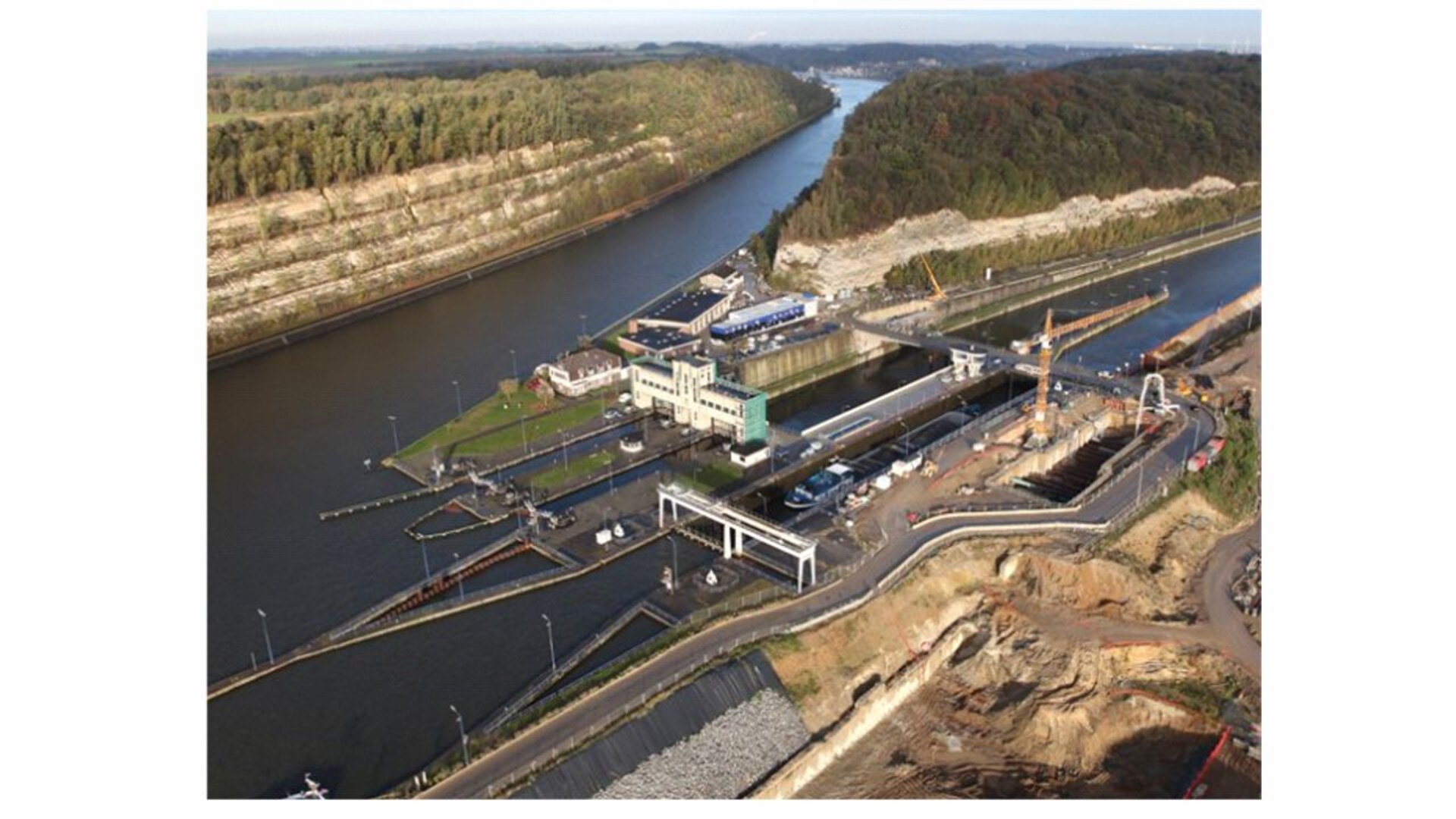

Flow Measurement on Sluice

Flowing Waters - Special Constructions


Application

  • Rectangular channel 5 x 5 m
  • Part filled
  • Concrete lining
  • Flow in both directions possible

Definition of tasks

  • Measurement of feed and drain volumes in the system channel to sluice chambers
  • High accuracy required to create a water balance of the channel system
  • Proven and reliable low-maintenance measurement system

Solution

  • The bidirectional NivuFlow NF650 flow measurement system was used.

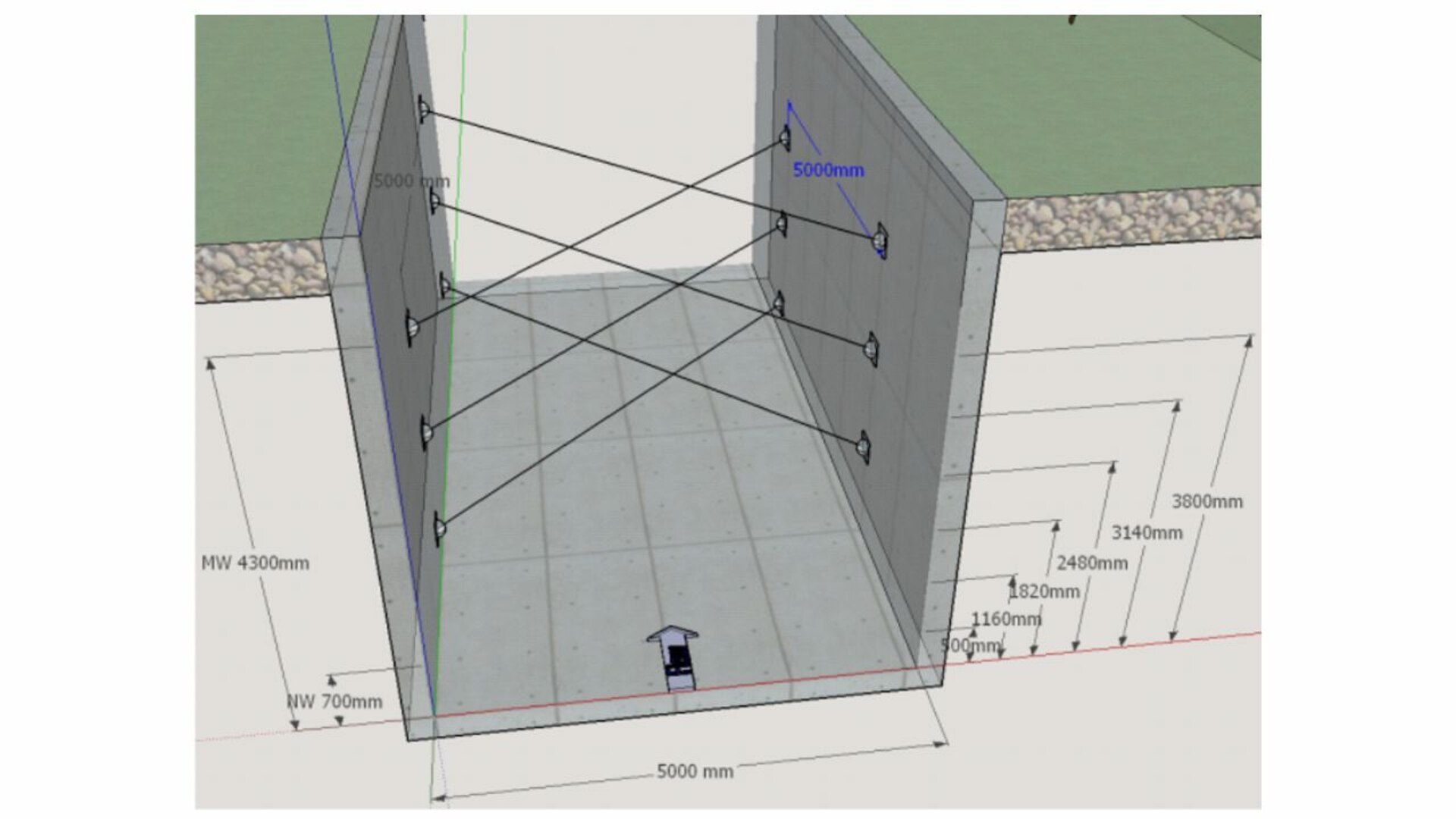

  • 3 measuring levels with 2 crossed paths each and the positions of the hemisphere sensors used  as well as the evaluation of the individual velocity paths according to DIN EN ISO 748 ensure high accuracy.

Advantages

  • Reliable measurement with high accuracy
  • Accepted by authorities since recording and evaluation of readings are based on international standards
