Dam Intake Measurement

Flowing Waters - Power Plants


Application

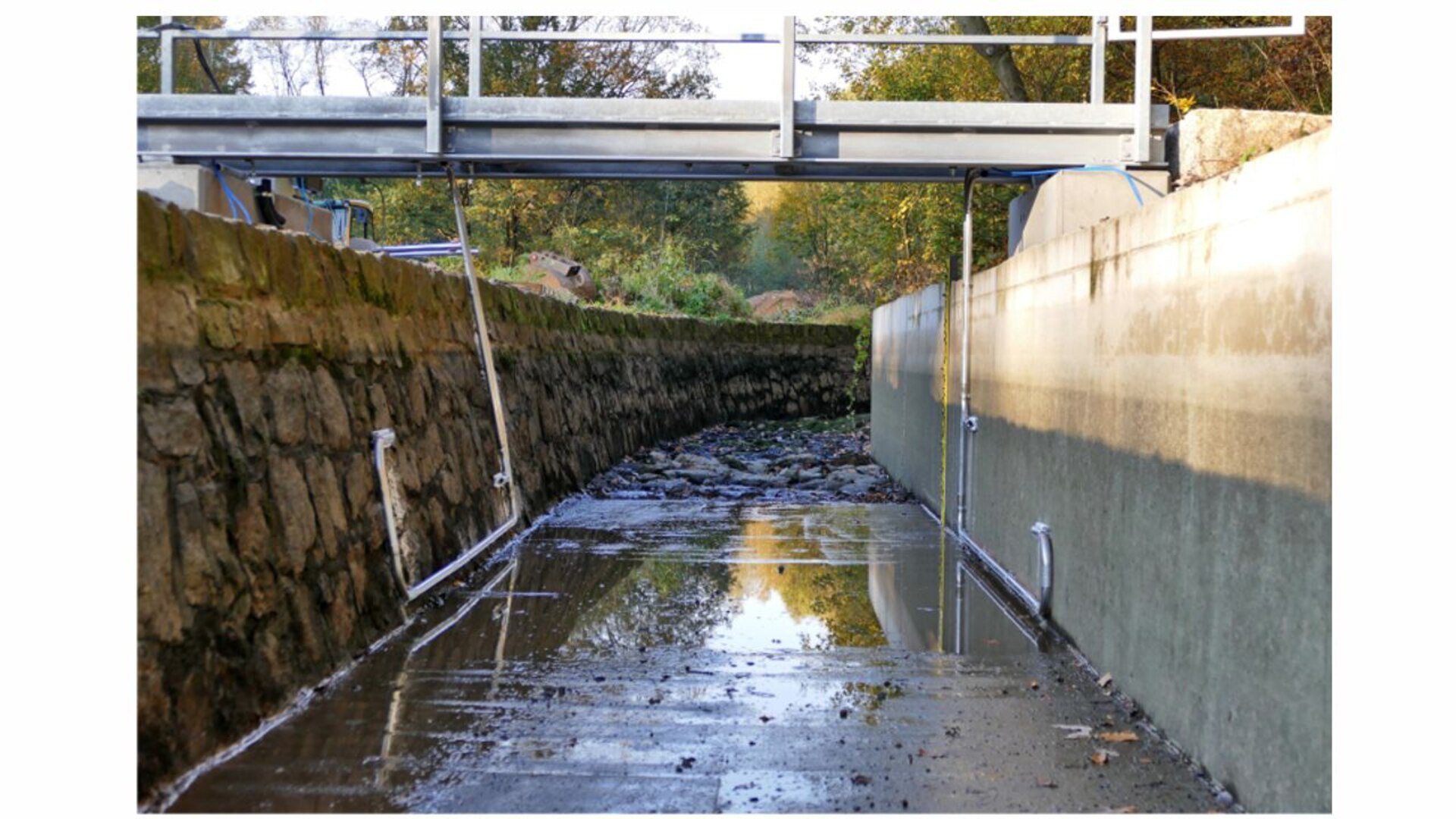

  • Rectangular channel 1.80 x 3.00 m (h x w), partially concrete, partially dry-stone walls
  • Partially filled
  • Rainwater and surface water
  • Short calming section
  • Manual detection of flow rates (level reading and Q/h-table) destroyed after flood



Definition of tasks

  • Continuous, automated flow measurement of turbine intake
  • High measurement accuracy despite short and unfavourable calming section for optimum use of the turbine for energy production
  • Maintenance-free system required since no personnel available

Solution

  • Ultrasonic transit time measurement with NivuFlow 650 was chosen due to the relatively clean medium.
  • A section of the channel bottom was planed with concrete improving the hydraulic conditions at the measurement point.

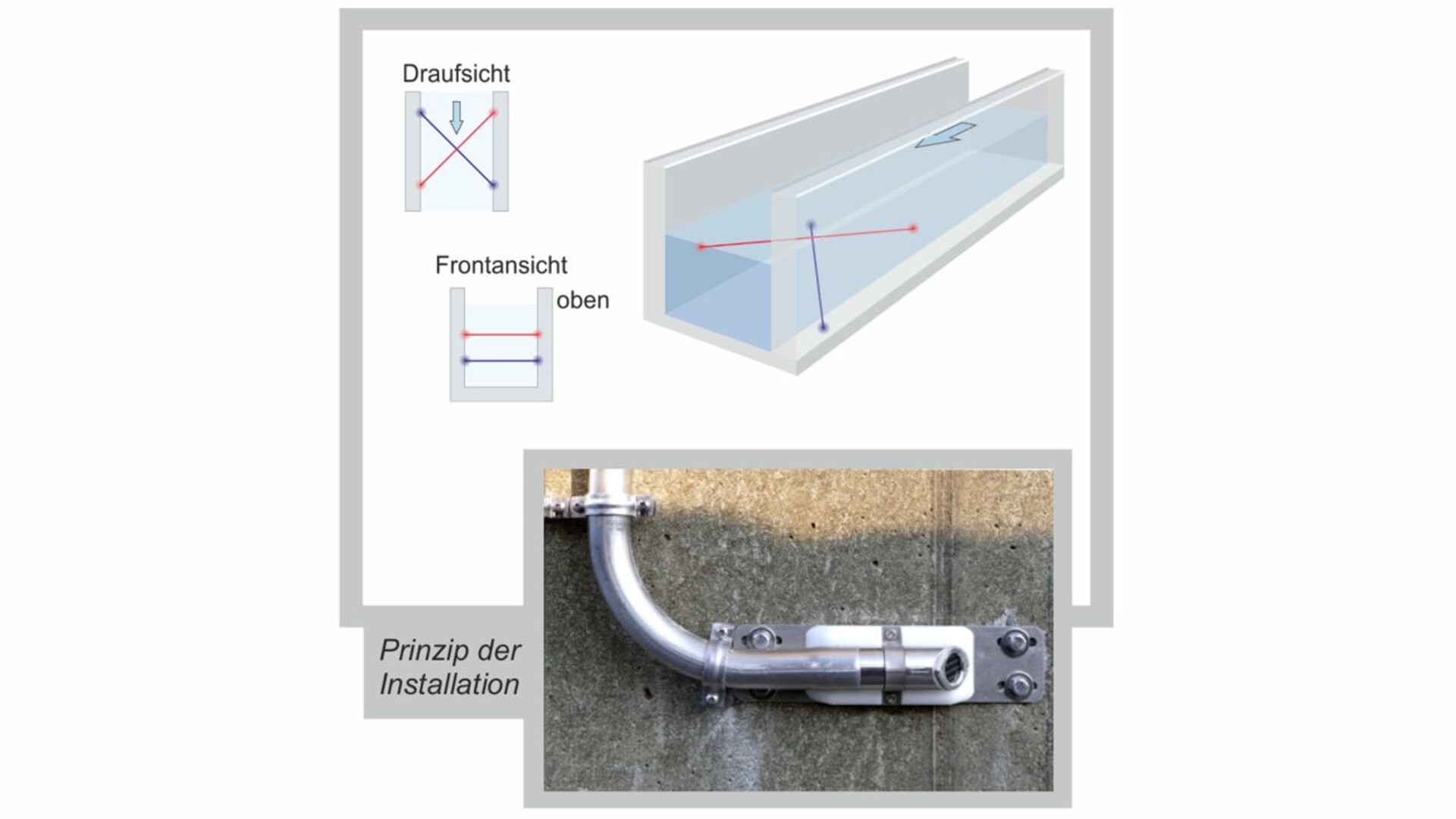

  • To achieve high accuracy after compensating skew flow behind the bend, a crosswise 2-path measurement with transit time sensors mounted in different heights were installed.

Advantages

  • Easy installation, easy accessibility, high accuracy, reliability and maintenance-free.
