Contactless Flow Measurement

Wastewater Treatment Plant - Intake Area


Application

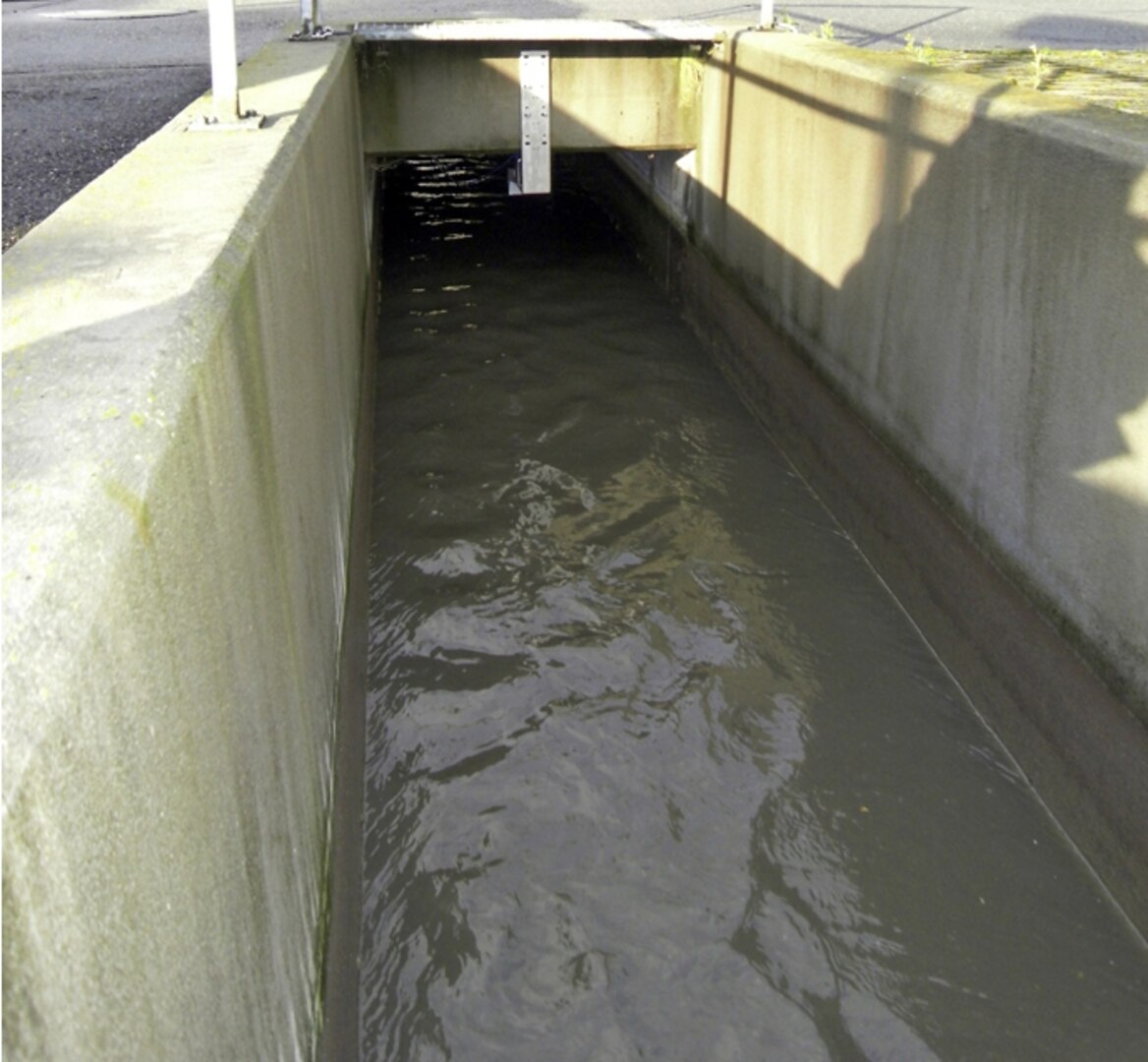

  • Concrete channel, width 1.2 m
  • Partially filled
  • Measurement point upstream of screen and grit trap
  • High sedimentation loads



Definition of tasks

  • Intake measurement as control measure to avoid WWTP flood
  • Contactless measurement system due to partially high pollution loads
  • Easy installation
  • No Ex required (open, aerated channel)

Solution

  • No sensors can be installed on the channel bottom or in floats due to high pollution loads or foam on the surface.
  • The surface radar measurement system Type NivuFlow 550 has been used since the measurement is for control purposes only without the need for certification.

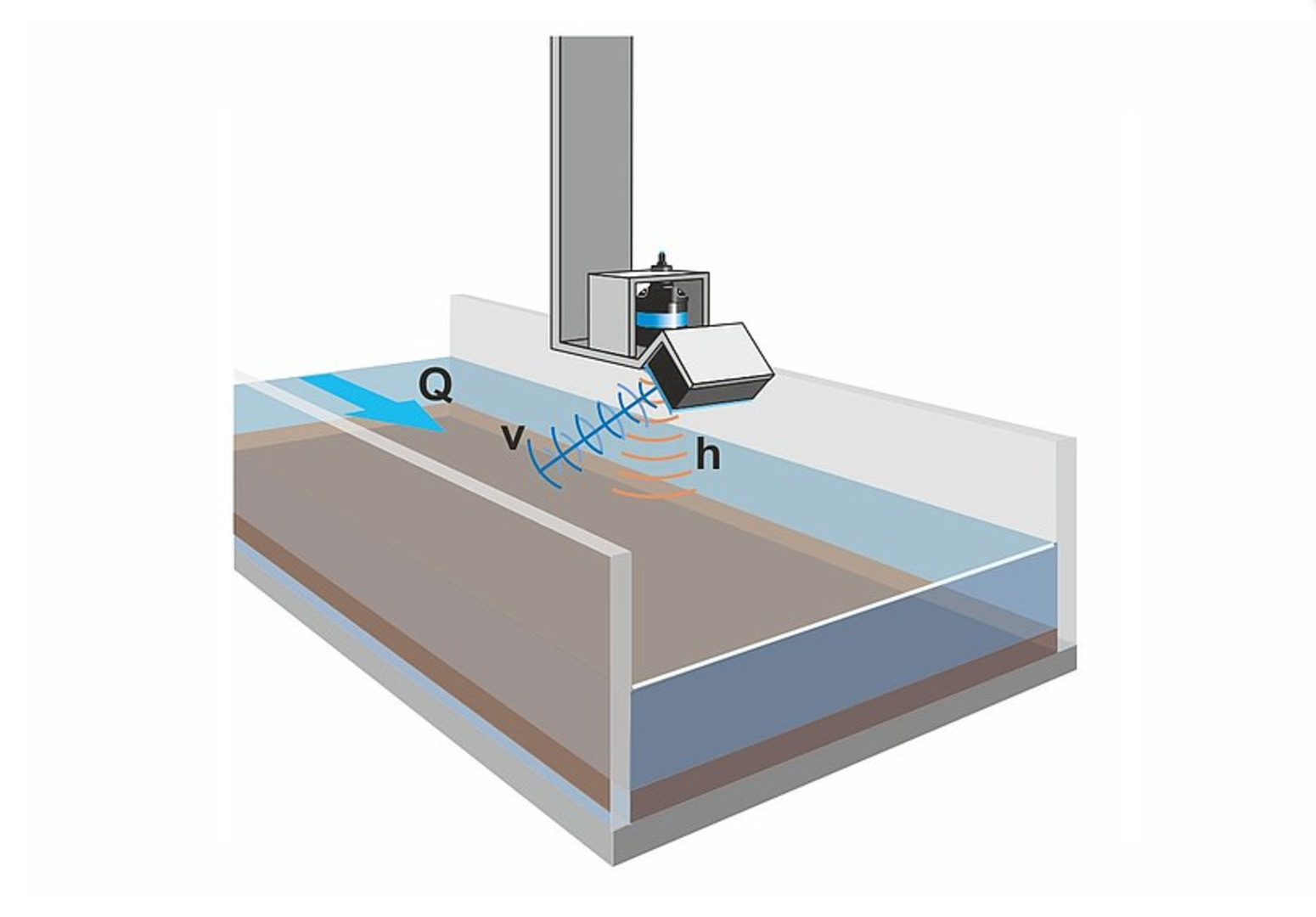

  • The system measures the velocity of the surface waves and calculates the current flow rate from this velocity, the measured level and the defined rectangular channel shape.

Advantages

  • Contactless
  • Insensitive to soiling
  • Easy to install
