Gateways

NivuLink CompactNew

Part No. NLC0 C

Gateway for measurement tasks

Reliable and secure data transmission for measurement tasks - a consistent connection from the sensor to the online provision of measurement data

NivuLink Compact

Reliable and secure data transmission for measurement tasks - a consistent connection from sensor to readings provision online



  • Quad band GPRS modem
  • Secure data transmission (TLS or VPN)
  • Adjustable measurement and transmission cycles
  • Alert and trigger functions via web portal
  • Device with integrated memory for measurement values, expandable with SD card
  • Continuous data availability
  • Real time synchronised via server
  • Minimum data transmission volume



NivuLink Compact is an open and ready-to-operate solution for quick connection of measurement systems to the NIVUS Web Portal or other higher systems. Readings now can be saved centrally and represented in an easy-to-read manner.

Commissioning and use are quick and easy since the gateway is completely pre-equipped. Users do not need programming skills but need to set parameters merely. Various interfaces allow for communication with neighbouring machines and devices. Data is transmitted via mobile communication or Ethernet interface.

Two ETHERNET interfaces and the integrated switch allow wiring in line topology.

Data security meets current requirements and is guaranteed by using integrated security services such as OVPN / IPsec / TLS.



Applications

Typical applications besides process industry and building automation can be found in the water industry.

  • Stormwater treatment plants
  • Sewer systems
  • Pump stations
  • Groundwater measurement places
  • Flood level
  • Silo filling
  • Weir measurements
  • Asset management
  • and many more

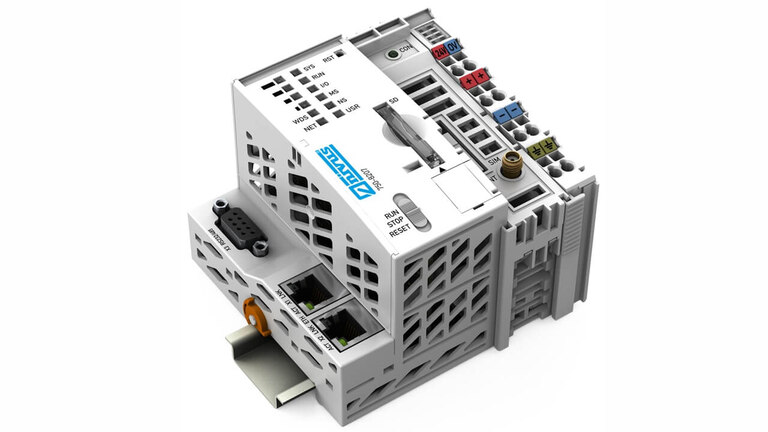

NivuLink Control

NivuLink Control provides an extended range of functions. Besides the functions of the NivuLink Compact mentioned previously, NivuLink Control additionally provides options for direct actuator control and interlocking control at the field level.

(copy 4)

  • NIVUS WebPortal

    The NIVUS WebPortal is a comprehensive data management system for storage and provision of measured...
    The NIVUS WebPortal is a comprehensive data management system for storage and provision of measured data. Thanks to storage on the web portal there are versatile options available to analyse readings, for system verification, data forwarding and alerting up to the creation of complete protocols.
  • Prozessleitsystem SCADA System NICOS

    NICOS

    360° expandable, 100% web capability, just 1 Solution. Use NICOS for monitoring and documentation of...
    360° expandable, 100% web capability, just 1 Solution. Use NICOS for monitoring and documentation of processes in centralised and decentralised facilities.

(copy 5)

  • NivuLink Control Gateway

    NivuLink Control

    Reliable and safe Telecontrol including PLC-Function for Measurement and Control Tasks
    Reliable and safe Telecontrol including PLC-Function for Measurement and Control Tasks
