Self-Sufficient Data Logger

NivuLevel MobileNew

Part No. NFM-050

Self-Sufficient GPRS/UMTS Data Logger

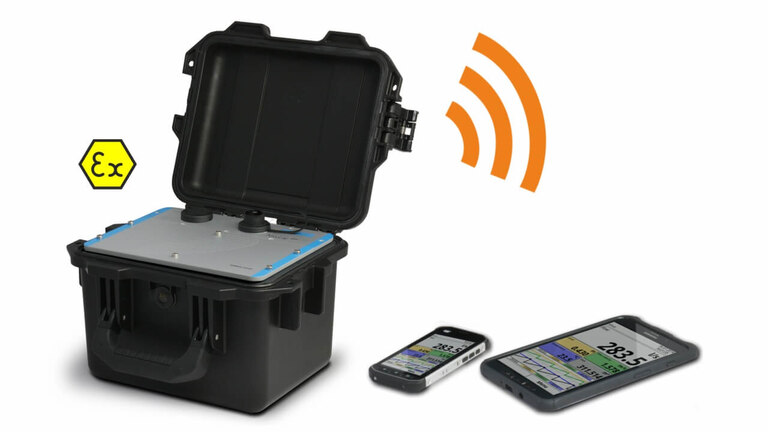

NivuLevel Mobile is a self-sufficient system with well-thought-out power management for reliable level measurements, data logging and convenient data transmission.

Description

Your benefits

  • Automatic transmission of measurement data
  • Power supply also for sensors
  • Extremely long battery life
  • Rechargeable battery can be easily replaced by operator
  • Flood protection IP68 when locked, IP67 open
  • Operation via smartphone, tablet etc.
  • NIVUS SIM uses best available service network and includes free data transmission for 1 year



Monitoring measurements on measurement sites with insufficient infrastructure are no longer a problem with NivuLevel Mobile. Measurements are reliably logged and transmitted via GPRS even if LAN and mains power are not available.


Intuitive up-to-date operation via web browser together with tablet, smartphone or notebook enable quick commissioning procedures. A quick start wizard guides through the most relevant parameter settings.



Test it!

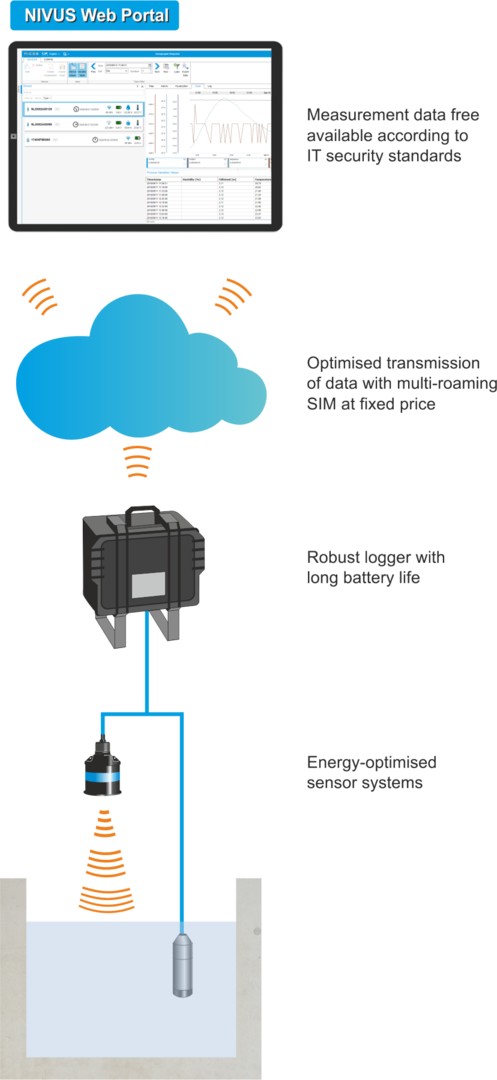

The integrated modem transmits readings and system data automatically to the NIVUS web portal. In combination with the long battery life service visits and hence maintenance expenses can be reduced to a minimum.

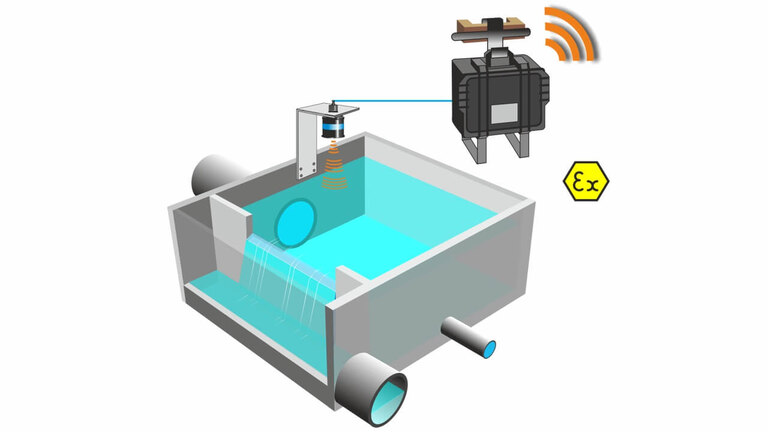

Application Examples

  • Event logging in stormwater treatment plants
  • Level measurement in water bodies
  • Level measurement in storage sewers
Technical Data
NivuLevel Mobile
SIM

Standard slot with NIVUS SIM or for customer SIM card

Data transmission
  • Via plug-in USB stick
  • Via WLAN
  • Via GPRS, UMTS, LTE
Data memory

Internal memory, covering a period of 1.5 years

Storage cycle

5 sec. - 60 min, cyclic or event-based

Inputs
  • 2x 0/4 - 20 mA (active)
  • 1x active digital input
  • 1x connection socket for battery charger or alternative power supply
  • Antenna socket
Operation

Wireless via integrated W-LAN via tablet, smartphone, notebook, etc. with standard web browser. No app installation necessary

Ex-Approval

Ex II 2G Ex eb ib [ib] mb IIB T4 Gb or

Ex II 3G Ex ic [ic Gc] nR IIB T4 Gc

Display

Status LED (RGB)

Enclosure
  • Material: HPX high-performance synthetic resin
  • Weight: approx. 4.7 Kg (without battery and hoop guards)
  • Protection: IP68 locked / IP67 open
Storage temperature

with battery pack: NFM-0050x 0xx / NFM-0050x Exx

  • −15°C to +45 °C



with battery pack: NFM-0050x Cxx / NFM-0050x 0xx

  • −15°C to +30 °C permanently recommended;
  • −15°C to +70 °C only permitted for short periods
Operating temperature

with battery pack: NFM-0050x 0xx / NFM-0050x Exx

  • −15°C to +50 °C; permissible charging temperature
  • VRLA-AGM battery pack: 0°C to +40 °C


with battery pack: NFM-0050x Cxx / NFM-0050x 0xx

  • 0°C to +30 °C permanently recommended;
  • −15°C to +50 °C only permitted for short periods
Power supply
  • 1 or 2 rechargeable batteries 12V/15 Ah, lead gel
  • Charger 100 - 240 V AC / 50 to 60 Hz / 50 VA

Specifications subject to change.
