NIVUS Pipe Profiler II
Part No. NPP0Pipe measuring section as extension to the mobile flow measurement system Nivu Flow Mobile 750.

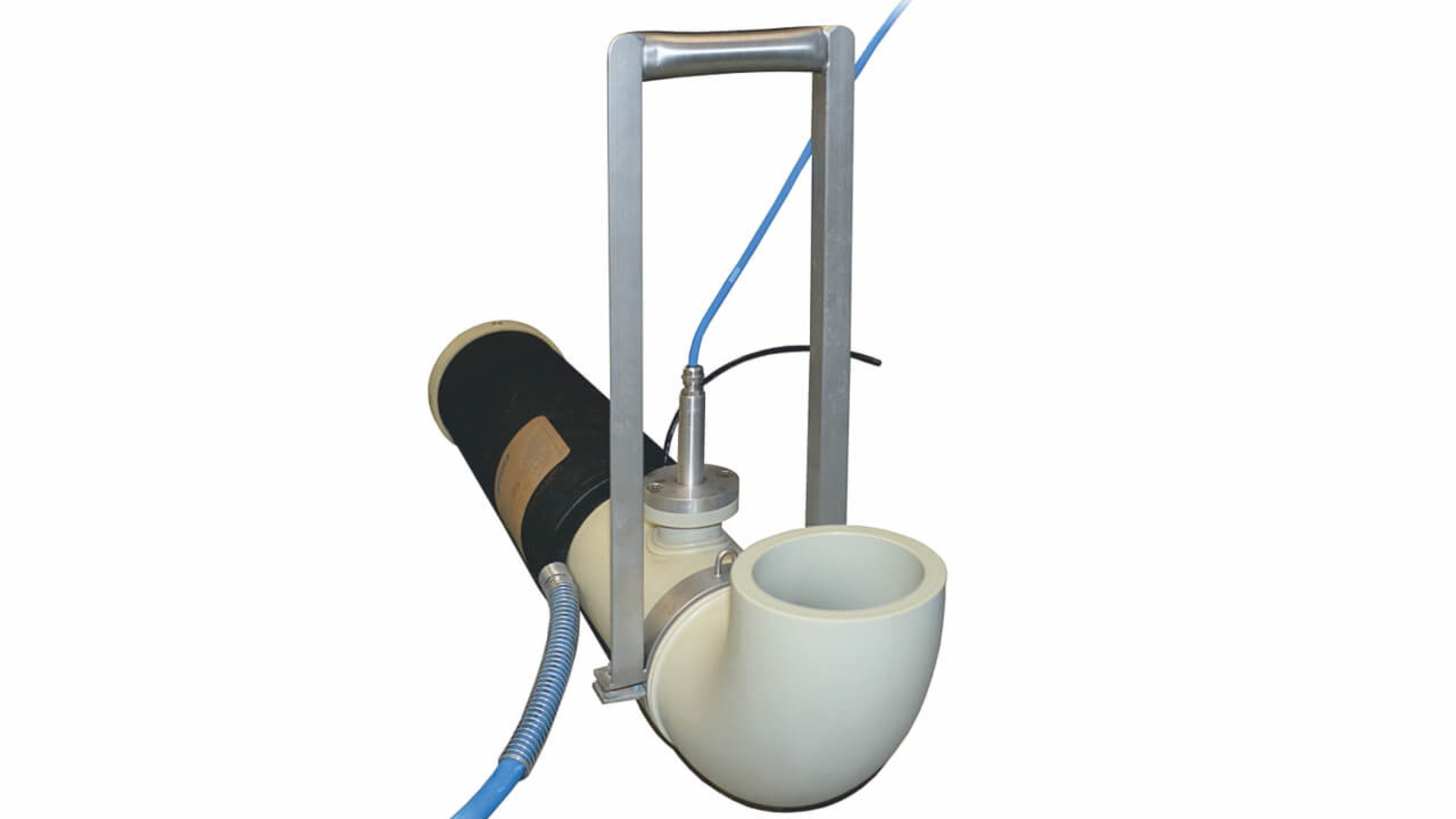

![[Translate to English:] NIVUS Pipe Profiler für schwierige hydraulische Bedingungen](/fileadmin/_processed_/7/8/csm_NIVUS-Pipe-Profiler-2018_418b3218ce.jpg "[Translate to English:] NIVUS Pipe Profiler für schwierige hydraulische Bedingungen")

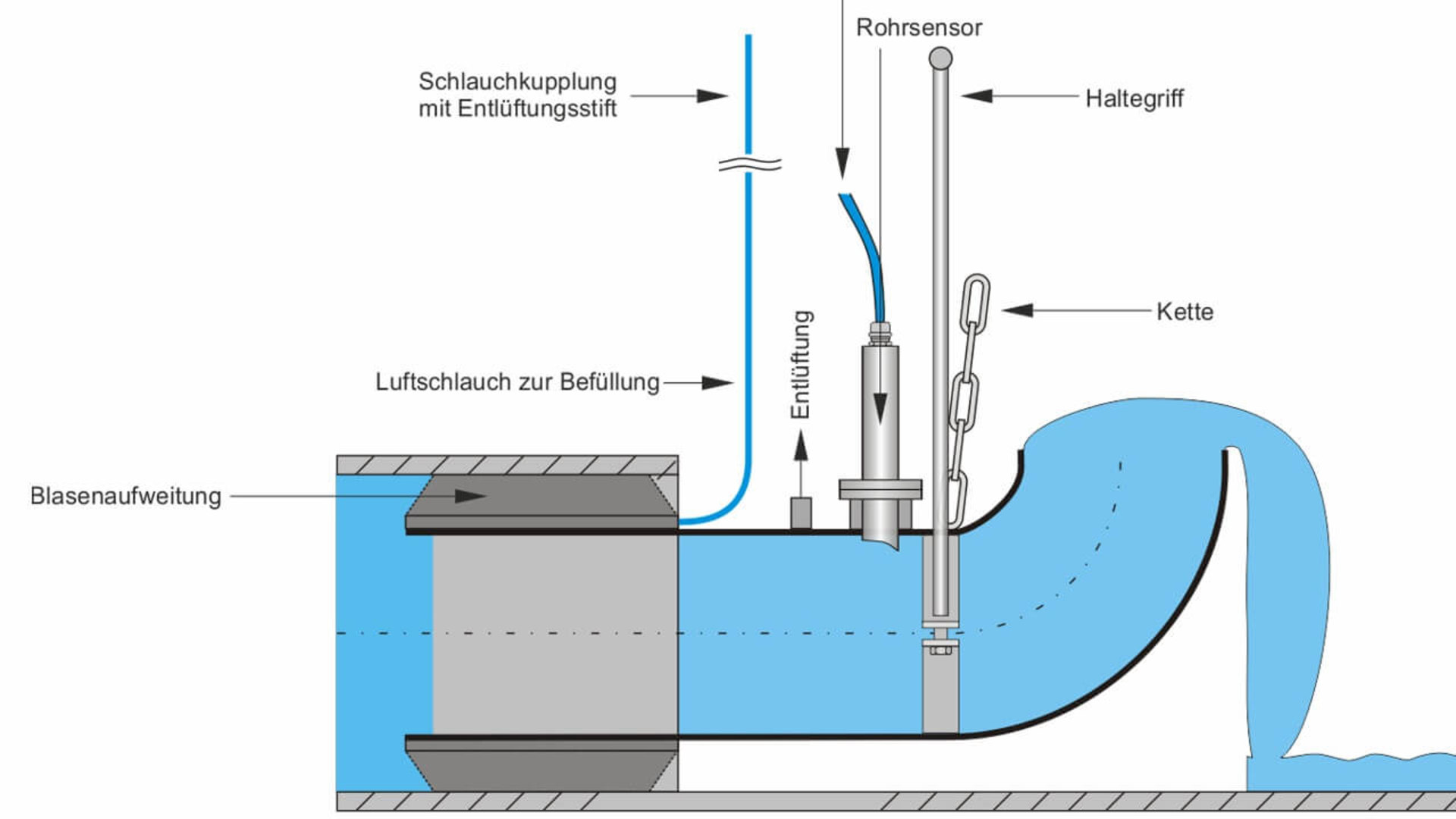

![[Translate to English:] NIVUS Pipe Profiler Funktionsschema](/fileadmin/_processed_/a/1/csm_NPP-Schema_f89e4f05f8.jpg "[Translate to English:] NIVUS Pipe Profiler Funktionsschema")

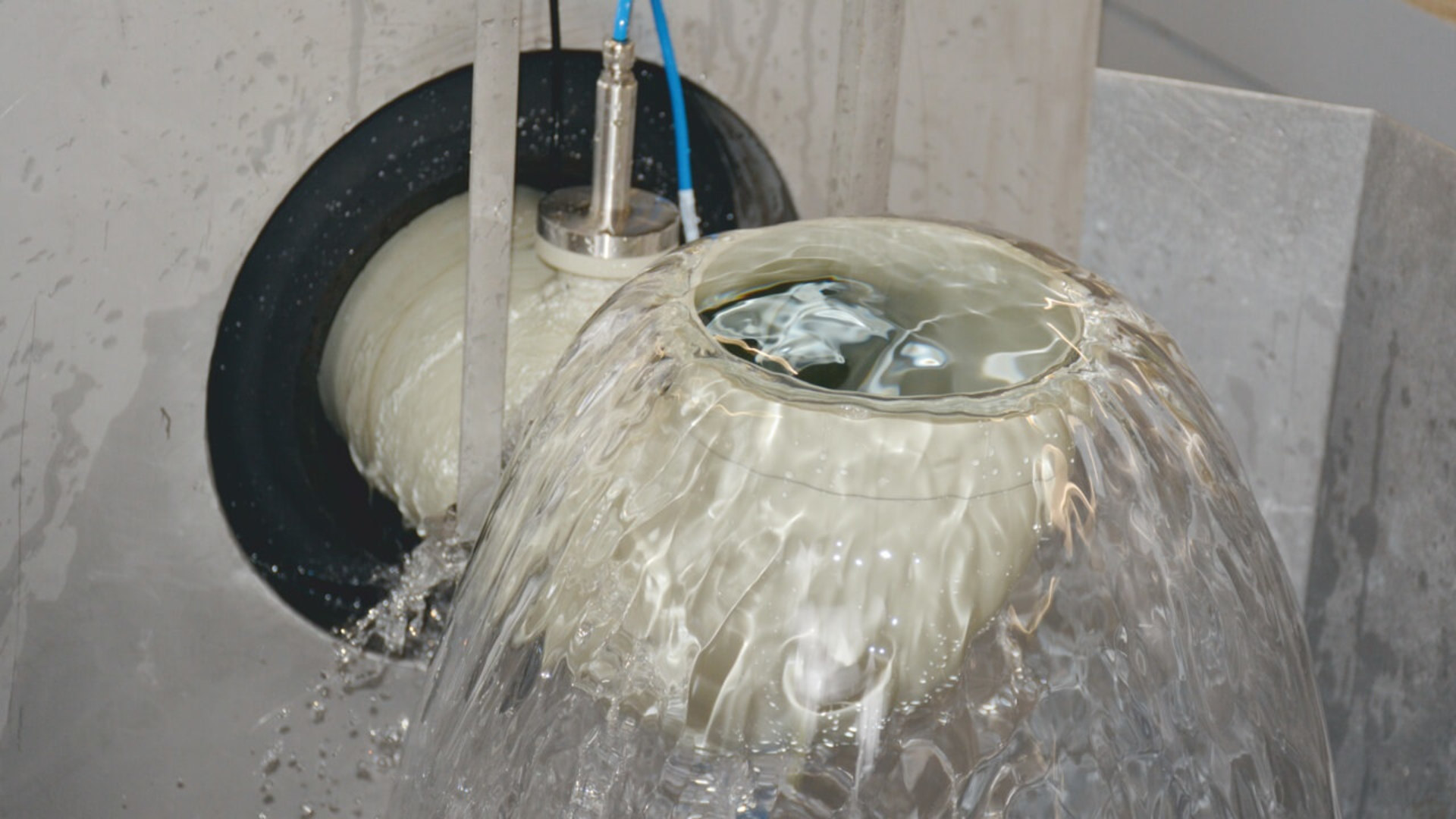

![[Translate to English:] Pipe Profiler Anwendungsbild](/fileadmin/_processed_/8/1/csm_PipeProfile-Application_01052a4068.jpg "[Translate to English:] Pipe Profiler Anwendungsbild")
![[Translate to English:] NIVUS Pipe Profiler für schwierige hydraulische Bedingungen](/fileadmin/_processed_/7/8/csm_NIVUS-Pipe-Profiler-2018_0cda2e91f0.jpg "[Translate to English:] NIVUS Pipe Profiler für schwierige hydraulische Bedingungen")

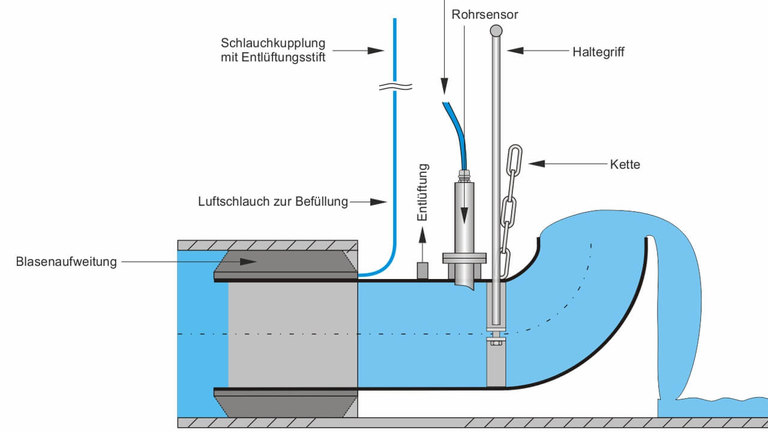

![[Translate to English:] NIVUS Pipe Profiler Funktionsschema](/fileadmin/_processed_/a/1/csm_NPP-Schema_20081e2d52.jpg "[Translate to English:] NIVUS Pipe Profiler Funktionsschema")
![[Translate to English:] Pipe Profiler Anwendungsbild](/fileadmin/_processed_/8/1/csm_PipeProfile-Application_0ce405532b.jpg "[Translate to English:] Pipe Profiler Anwendungsbild")
Description
- Calibrated overall system
- Sensor is always correctly positioned due to guided sensor holder
- Exactly defined pipe cross-sectional area
- Measurement under full filling with ideal flow profile
- Proven flow velocity measurement using ultrasonic cross correlation
- Variable use in different nominal pipe diameters
- Low weight, installation in shaft by one person possible
For measurements under difficult conditions
Calibrated system with unrivalled light weight and short installation length, installation by one person possible. Highly accurate measurement under full filling.
Variable use in different nominal pipe diameters.
The measurement system ensures highly accurate determination of the flow rate even under difficult conditions, such as low discharge rates or poor hydraulic flow conditions.
- Verification of channel utilisation
- Calibration basis for hydraulic calculation models
- Determination of required renovation extents
- Determination of required reservoir volumes (retention basin)
- Introduction of a channel management system
- Localisation of extraneous water volumes
- Influent control
- Throttle discharge control
- Determination of basic data for new billing networks
Technical Data
| Common | |
|---|---|
| Max. filling pressure | 1.5 bar |
| Operating temperature | -10 °C to +70 °C |
| Storage temperature | -20 °C to +60 °C |
| Measurement uncertainty | 2 % depending on measurement and boundary conditions |
Specifications subject to change.
| CSM Pipe Sensor | |
|---|---|
| Measurement principle | Ultrasonic cross correlation with real flow profile measurement |
| Measurement frequency | 1 MHz |
| Protection | IP68 |
| Ex-Approval | II 2G Ex ib IIB T4 Gb (ATEX) Ex ib IIB T4 Gb (IECEX) |
| Operating pressure | Max. 4 bar |
| Cable lengths | 15 m |
| Construction | 1" pipe sensor with connection flange |
| Measurement range | -100 cm/s to +600 cm/s |
| Number of scan layers | Max. 16 |
| Zero point drift | Absolutely stable zero point |
| Error limits | Per scan layer: < 1 % of measurement value (v > 1 m/s) < 0.5 % of meas. value +5 mm/s (v < 1 m/s) |
| Material | Stainless steel 1.4571 (AISI 316Ti), PEEK |
Specifications subject to change.
| DN 150 | |
|---|---|
| Outer diameter | 148 mm |
| Inner diameter | 90 mm |
| Weight (sensor head without cable) | 11 kg |
| Total length | 835 mm |
| for assembly in pipe with inner diameter | 150 - 300 mm |
| Qmax | approx. 38 l/s |
| Q with 1m accumulation | approx. 17 l/s |
Specifications subject to change.
