Flow Meter
NivuFlow Mobile 750
Part No. NFM7For high accurate and portable flow metering in part filled and full channels. Best use for wastewater applications.

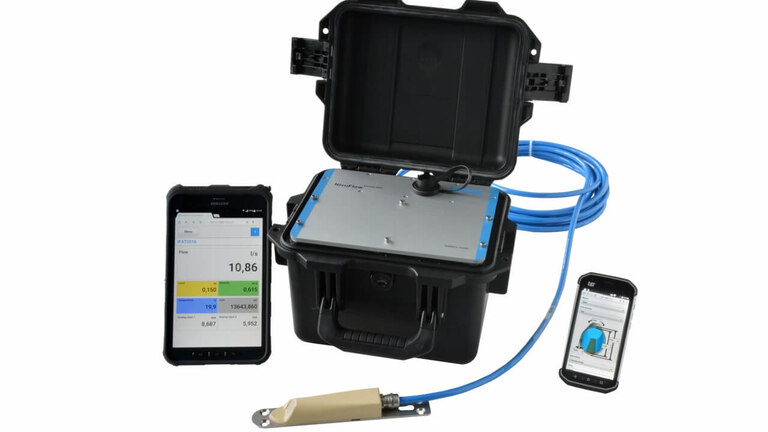

![[Translate to English:] Portable Durchflussmessung im Abwasser](/fileadmin/_processed_/6/6/csm_NivuFlowMobile750_714ad8974e.jpg "[Translate to English:] Portable Durchflussmessung im Abwasser")

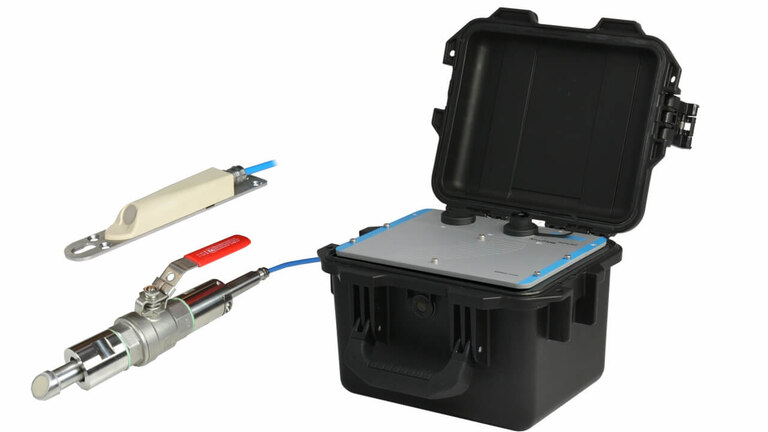

![[Translate to English:] Portables Durchflussmesser mit Rohr- und Keilsensoren](/fileadmin/_processed_/e/5/csm_NivuFlowMobile750-portablesystemsensors_4cb6d14993.jpg "[Translate to English:] Portables Durchflussmesser mit Rohr- und Keilsensoren")

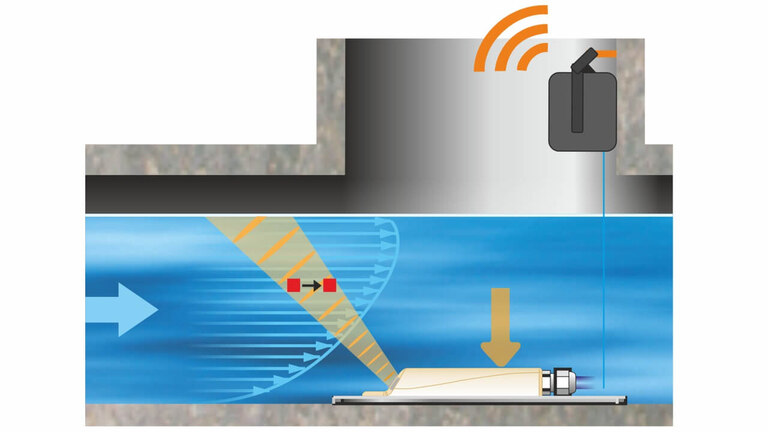

![[Translate to English:] Schema portable Durchflussmessung mit Keilsensoren](/fileadmin/_processed_/7/1/csm_NivuFlowMobile750-portablesystemwedgescheme_e33d1e463c.jpg "[Translate to English:] Schema portable Durchflussmessung mit Keilsensoren")

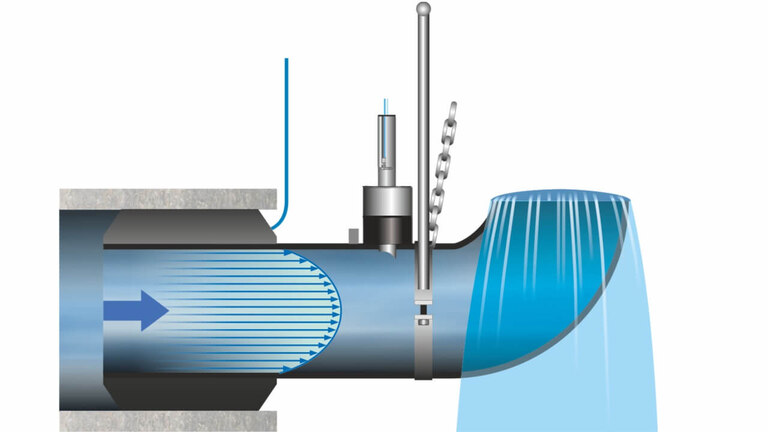

![[Translate to English:] Portable Durchflussmessung in teilgefüllten Rohren](/fileadmin/_processed_/e/2/csm_NivuFlowMobile750-portablesystempipescheme_4bf826f384.jpg "[Translate to English:] Portable Durchflussmessung in teilgefüllten Rohren")

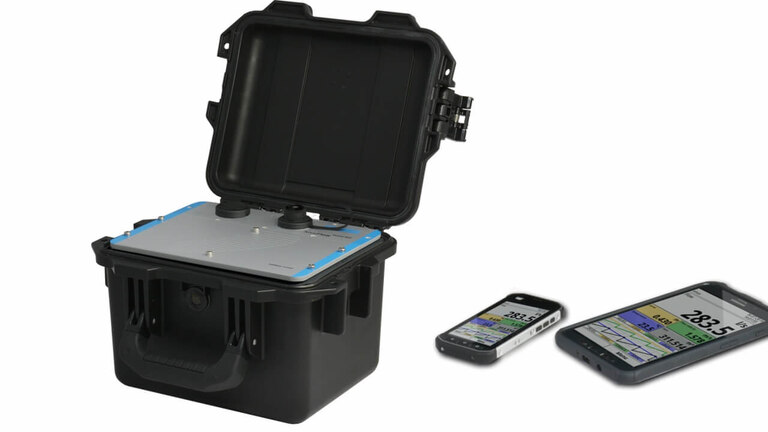

![[Translate to English:] Durchflussmessung mit intuitiver Bedienung](/fileadmin/_processed_/b/a/csm_NivuFlowMobile750-portabletransmitter_722edcbd56.jpg "[Translate to English:] Durchflussmessung mit intuitiver Bedienung")
![[Translate to English:] Portable Durchflussmessung im Abwasser](/fileadmin/_processed_/6/6/csm_NivuFlowMobile750_a56d06ce38.jpg "[Translate to English:] Portable Durchflussmessung im Abwasser")
![[Translate to English:] Portables Durchflussmesser mit Rohr- und Keilsensoren](/fileadmin/_processed_/e/5/csm_NivuFlowMobile750-portablesystemsensors_e7d58abbad.jpg "[Translate to English:] Portables Durchflussmesser mit Rohr- und Keilsensoren")
![[Translate to English:] Schema portable Durchflussmessung mit Keilsensoren](/fileadmin/_processed_/7/1/csm_NivuFlowMobile750-portablesystemwedgescheme_930ff38fa2.jpg "[Translate to English:] Schema portable Durchflussmessung mit Keilsensoren")
![[Translate to English:] Portable Durchflussmessung in teilgefüllten Rohren](/fileadmin/_processed_/e/2/csm_NivuFlowMobile750-portablesystempipescheme_be18eee970.jpg "[Translate to English:] Portable Durchflussmessung in teilgefüllten Rohren")
![[Translate to English:] Durchflussmessung mit intuitiver Bedienung](/fileadmin/_processed_/b/a/csm_NivuFlowMobile750-portabletransmitter_5880796a8b.jpg "[Translate to English:] Durchflussmessung mit intuitiver Bedienung")
Description
NivuFlow Mobile 750
For high accurate and portable flow metering in part filled and full channels. The well thought-out power management and the built-in modem allow long-term measuring with automatic data transmission.
Benefits
- Extremely long battery life – 5 min. 250 days
- Flood protected IP68 locked, IP67 open
- Operation via smartphone, tablet etc.
- Quick start assistant
- Automatic sensor detection
- Wide range of sensors for best application solutions
- Integrated Modem optional
NivuFlow Mobile 750 is the successor to the PCM product family. Based on the ultrasonic cross correlation technology with flow profile detection and thanks to the use of up to 3 v-sensors the portable system provides highest accuracy. Accessories such as a calibrated pipe measuring section to force full filled pipes or appropriate sensor mounting materials provide the best possible conditions for impeccable measurements.
The modern operating concept via web browser in connection with tablet, smartphone etc. is intuitive and enables quick commissioning. Here, a quick start asistant guides through the most relevant parameter settings.
The optional built-in modem provides automatic data transmission via e-mail, FTP or web portal. In combination with the long battery life the number of maintenance jobs can be reduced to a minimum.
Technical Data
| Common | |
|---|---|
| Measurement principle | Ultrasonic cross correlation w. flow profile detection |
| Power supply |
|
| Enclosure |
|
| Operating temperature |
|
| Storage temperature | −20°C to +70°C |
| Max. humidity | 90 %, non-condensing |
| Display | Status LED (RGB) |
| Ex-Approval | Optional: II 2G Ex eb ib [ib] mb IIB T4 Gb |
| Operation | Magnet switch, via WLAN using Smartphone, Tablet, Notebook |
| Inputs |
|
| Outputs |
|
| Storage cycle | 5 sec. - 60 min, cyclic or event-based |
| Data memory | Internal memory, covering a period of 1.5 years at a measurement interval of 5 minutes |
| Data transmission |
|
Specifications subject to change.
Downloads
Data Sheet NivuFlow Mobile 750
For high accurate and portable flow metering in part filled and full channels

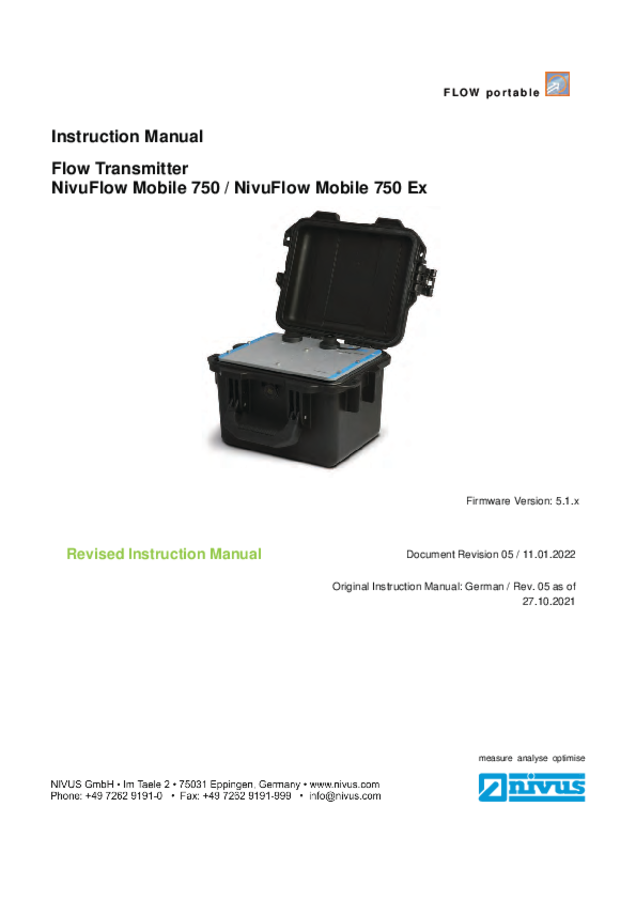

Manual Instruction Rev.05 "NivuFlow Mobile 750"
Technical Information: Activation of NIVUS Function Licences
Activation of NIVUS Function Licences for Measurement Transmitter NivuFlow Mobile and Data Logger NivuLevel Mobile
NivuFlow Mobile Battery Operating Time
Information NivuFlow Mobile/NivuLevel Mobile Modem Coverage
Installation of cable adapters for NFM 750, NFM 00, NFM 550, NFM 050
for the connection of 0...20 mA / 4...20 mA sensors with open cable end
IECEx Certificate of Conformity NivuFlow Mobile
EU-Type Examination Certificate "Portable Measuring Transformer NivuFlow Mobile Type NFM-0xxx x E"
EU Declaration of Conformity | "Ex" Portable flow measurement transmitter/data logger, with internal modem for data transmission via GPRS/UMTS/LTE NivuFlow Mobile / NivuLevel Mobile
NFM0xxx GE Ex
EU Declaration of Conformity | "Ex" Portable flow measurement transmitter/data logger, with internal modem for data transmission via GPRS/UMTS/LTE NivuFlow Mobile / NivuLevel Mobile
NFM0xxxGE Gx
EU Declaration of Conformity | Portable flow measurement transmitter/data logger with internal modem for data transmission via GPRS/UMTS/LTE NivuFlow Mobile/NivuLevel Mobile
NFM0xxxG0 Gx
EU Declaration of Conformity | Portable flow measurement transmitter/data logger with internal modem for data transmission via GPRS/UMTS/LTE NivuFlow Mobile/NivuLevel Mobile
NFM0xxxG0 Ex
EU Declaration of Conformity | Portable flow measurement transmitter/data logger, standard version NivuFlow Mobile / NivuLevel Mobile
NFM0xxx00 00
Tender Specification NivuFlow Mobile 750
