Flow Sensors
CSM Correlation Sensor
Part No. CSM-V100Measurements starting at flow levels of 3 cm
Ultrasonic sensors for flow measurement with very high accuracy in slight to heavily polluted media. For installation on channel wall or channel bottom
![[Translate to English:] CSM-D - Keilsensor mit integrierter Füllstandsmessung](/fileadmin/_processed_/f/7/csm_Minisensor-2_dbc9cba6f7.png "[Translate to English:] CSM-Keilsensor mit integrierter Füllstandsmessung")
![[Translate to English:] Füllstandmessung für Minisensor](/fileadmin/_processed_/6/d/csm_dsm-mini-fuellstand_c1c506539e.png "[Translate to English:] DSM - Füllstandmessung für Minisensor")
![[Translate to English:] Elektronikbox für Minisensoren](/fileadmin/_processed_/b/5/csm_Minisensor-3_d027bf17ee.png "[Translate to English:] Elektronikbox für Minisensoren")
![[Translate to English:] Durchflussmessung Fließprofildarstellung](/fileadmin/_processed_/a/c/csm_OCM-Pro-CF-4-transmitter_83f9603986.png "[Translate to English:] Durchflussmessung Fließprofildarstellung")
![[Translate to English:] CSM-D - Keilsensor mit integrierter Füllstandsmessung](/fileadmin/_processed_/f/7/csm_Minisensor-2_6d0d9c87bf.png "[Translate to English:] CSM-Keilsensor mit integrierter Füllstandsmessung")
![[Translate to English:] Füllstandmessung für Minisensor](/fileadmin/_processed_/6/d/csm_dsm-mini-fuellstand_9b6dd3a80d.png "[Translate to English:] DSM - Füllstandmessung für Minisensor")
![[Translate to English:] Elektronikbox für Minisensoren](/fileadmin/_processed_/b/5/csm_Minisensor-3_98c397c908.png "[Translate to English:] Elektronikbox für Minisensoren")
![[Translate to English:] Durchflussmessung Fließprofildarstellung](/fileadmin/_processed_/a/c/csm_OCM-Pro-CF-4-transmitter_deac6c2a8d.png "[Translate to English:] Durchflussmessung Fließprofildarstellung")
For high-accurate flow measurement by means of ultrasonic cross correlation method
- Infiltration measurement (extraneous water)
- Influent control
- Billing measurement places
- Discharge constructions
- Precipitation discharge measurements
The Mini sensor family provides the best possible sensors to detect lowest flow levels e.g. for infiltration measurement (extraneous water) or indirect discharge measurement.
The sensors use the proven ultrasonic cross correlation method patented by NIVUS. This method allows to detect and to indicate flow profiles starting at flow levels as low as a few centimeters.
Due to their shape the sensors are particularly suitable for small geometries and help to avoid backwater effects, the risk of build-up and clogging.
Typical applications for Mini sensors
- Measurement campaigns in channel networks
- Small WWTPs: intake and discharge
- Industrial wastewater networks
- Particularly suitable for channels featuring low flow levels
| Common | |
|---|---|
| Flow Velocity Sensor, Type CSM | |
| Measurement principle | Ultrasonic Cross Correlation with digital pattern detection (flow velocity) Piezo-resistive pressure measurement (level measurement) |
| Sensor types | v-sensor with T-compensation v-sensor with T-compensation and h measurement (hydrostatic) |
| Protection | IP 68 |
| Ex-Approval | II 2 G Ex ib IIB T4 Gb |
| Operating temperature | Wedge sensor without hydrostatic level measurement -20 °C up to +70 °C for up to 15 min operating time -20 °C up to +65 °C when used continuously -40 °C up to +80 °C when used in Ex Zone 1 Wedge sensor without hydrostatic level measurement -20 °C up to +50 °C -40 °C up to +80 °C when used in Ex Zone 1 |
| Storage temperature | -30 °C to +70 °C |
| Operating pressure | max. 4 bar (combi sensor with pressure cell max. 1 bar) |

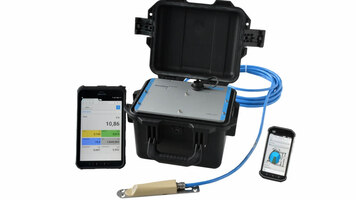

| Cable lengths | 7/15 m, not extendable, for connection to electronic box / NivuFlow Mobile 750 20 m (sensor with pressure cell only) |
| Outside cable diameter | Combi sensor with pressure measurement: 9 mm ±0.25 mm Sensors without pressure measurement: 6 mm ±0.2 mm |
| Sensor connection | Cable end with plug for connection to Electronic Box EBM Cable end with plug and pressure compensation element (sensors with pressure measurement cell only) for connection to Electronic Box EBM |
| Construction | Wedge sensor for installation on the channel bottom |
| Installation Options | In pipes starting at 150 mm diameter (sensor with pressure cell) or 160 mm (sensor without pressure cell + air-ultrasonic sensor Type DSM) In channels with a minimum width of 100 mm |
| Medium-contacting materials | Polyurethane, stainless steel 1.4571, PVDF, PA Pressure compensationelement: POM-C, PMMA, PA, stainless steel 1.4571 (CSM-D only) |
| Flow velocity measurement | |
| Measurement range | -100 cm/s to +600 cm/s |
| Number of scan layers | max. 16 |
| Measurement uncertainty | for 0.05≤|V|≤0.5 m/s: E_v=0.5/|V| [%] for |V|>0,5 m/s: E_v=1 % |
| Zero point drift | absolutely stable zero point |
| Beam angle | ±5 degrees |
| Level measurement – Pressure | |
| Measurement range | 0 to 500 cm |
| Zero point drift | max. 0.75 % of final value (0 – 50 °C) |
| Measurement uncertainty | standing medium: +/- 0.5 of final value (within a range of 0.05 – 3.5 m) |
| Temperature measurement | |
| Measurement range | -20 °C to +60 °C |
| Measurement uncertainty | ±0.5 K |
Specifications subject to change.
