Flow Measurement Impoundage Shield

Wastewater Treatment Plant - Discharge Area


Application

  • Pipe DN 400, made of stainless steel
  • Partially filled
  • Only short measuring section available
  • Low nightly discharge



Definition of tasks

  • Implementation of discharge measurement to replace flat-rate billing using the existing inlet measurement and to save costs
  • Reliable and accurate detection of low flow volumes during the nights
  • Low efforts and expenses for measurement installation

Solution

  • The task has been solved using an OCM Pro CF.
  • The discharge pipe into the recipient has been left unmodified. It is now used as a new measuring section

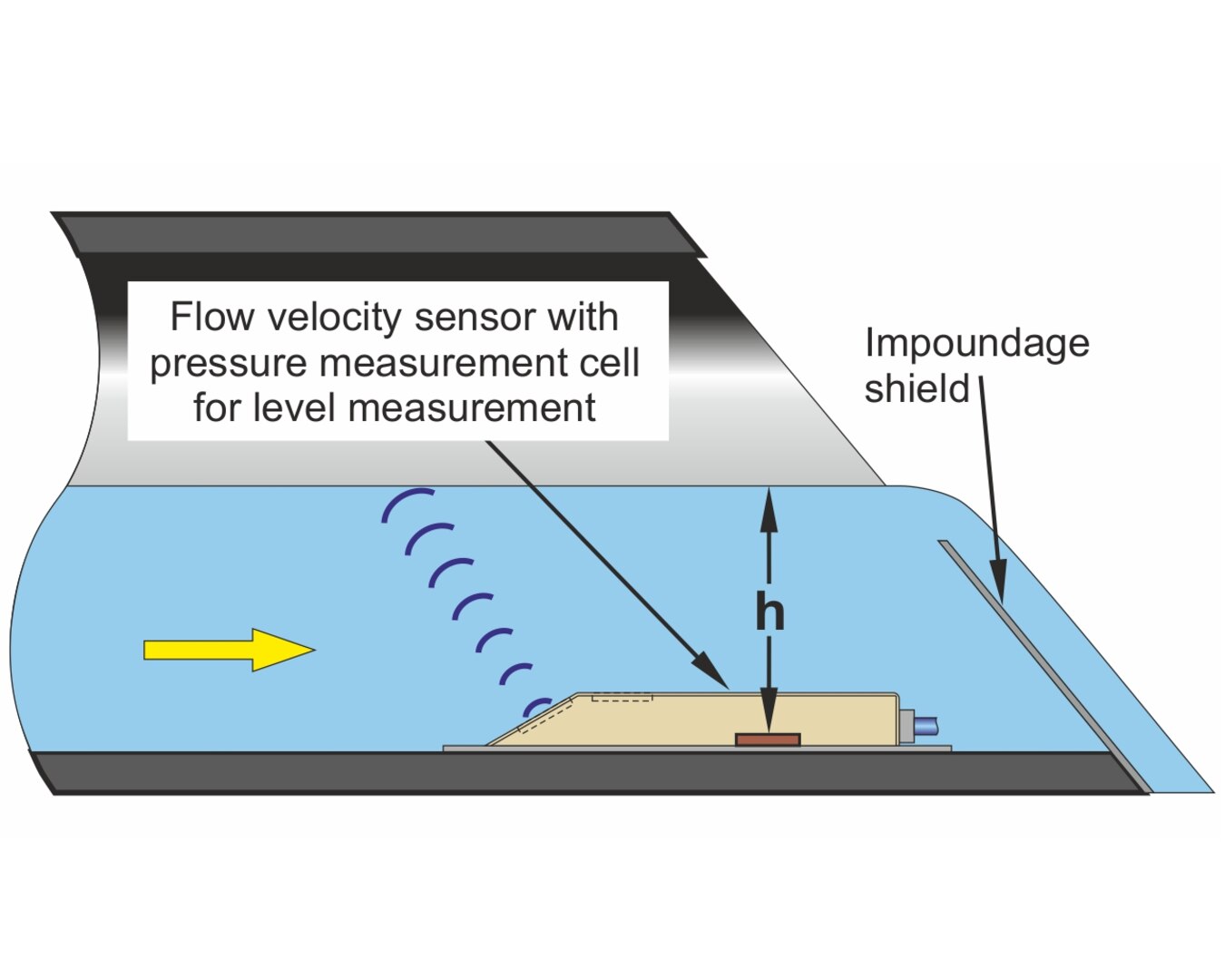

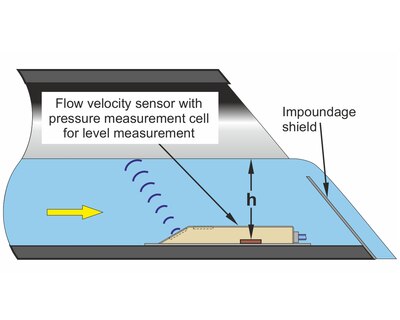

  • A flow velocity sensor with integrated pressure cell for level measurement has been installed using a pipe mounting system.

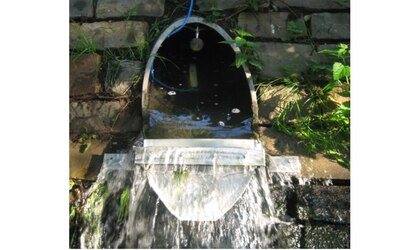

  • To detect even lowest volumes, an impoundage shield has been installed to constantly create a minimum water level.

Advantages

  • No facility modification required
  • Sensor fastening without drilling or similar
  • High measuring dynamics between nightly discharge and rainy weather can be measured
