Flow Measurement in large Collector Duct

Channel Networks - Fix Installation Measurements


Application

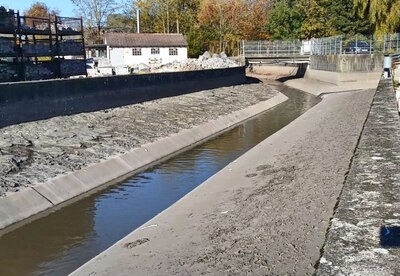

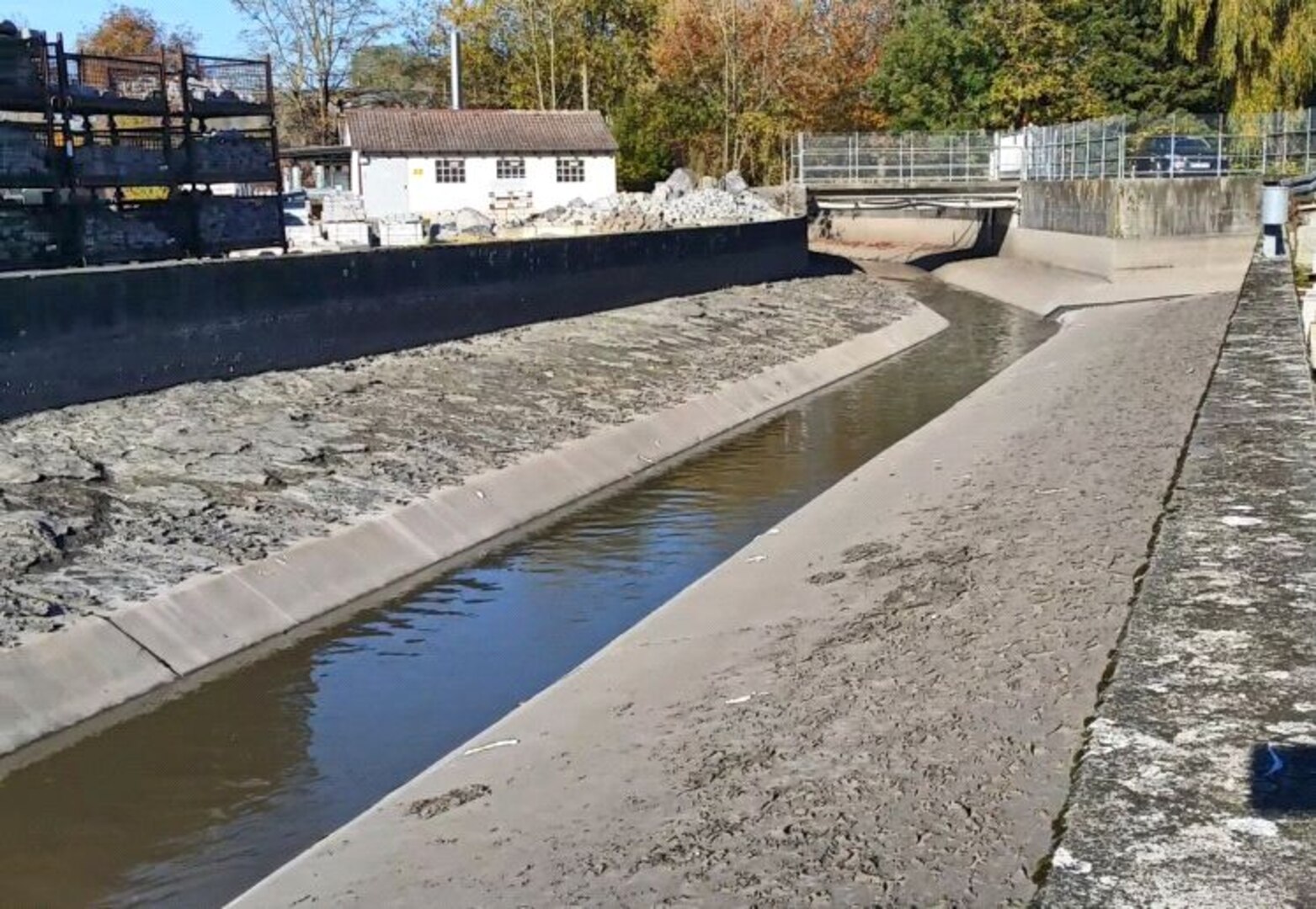

  • Trapezoid canal with dry weather flume and sloping bottom, 10 m x 2.5 m (w x h)
  • Partially filled
  • Old concrete
  • Lateral inflow upstream of measurement place

Definition of tasks

  • Detection of combined sewage discharge between 200 l/s and 20.000 l/s (nighttime discharge - rainfall)
  • High accuracy of the system despite curved canal and lateral inflow upstream of measurement place
  • System should be insensitive to soiling

Solution

  • An ultrasonic cross correlation system type NivuFlow 750-M9 was used which can be used in connection with up to 9 flow velocity sensors.

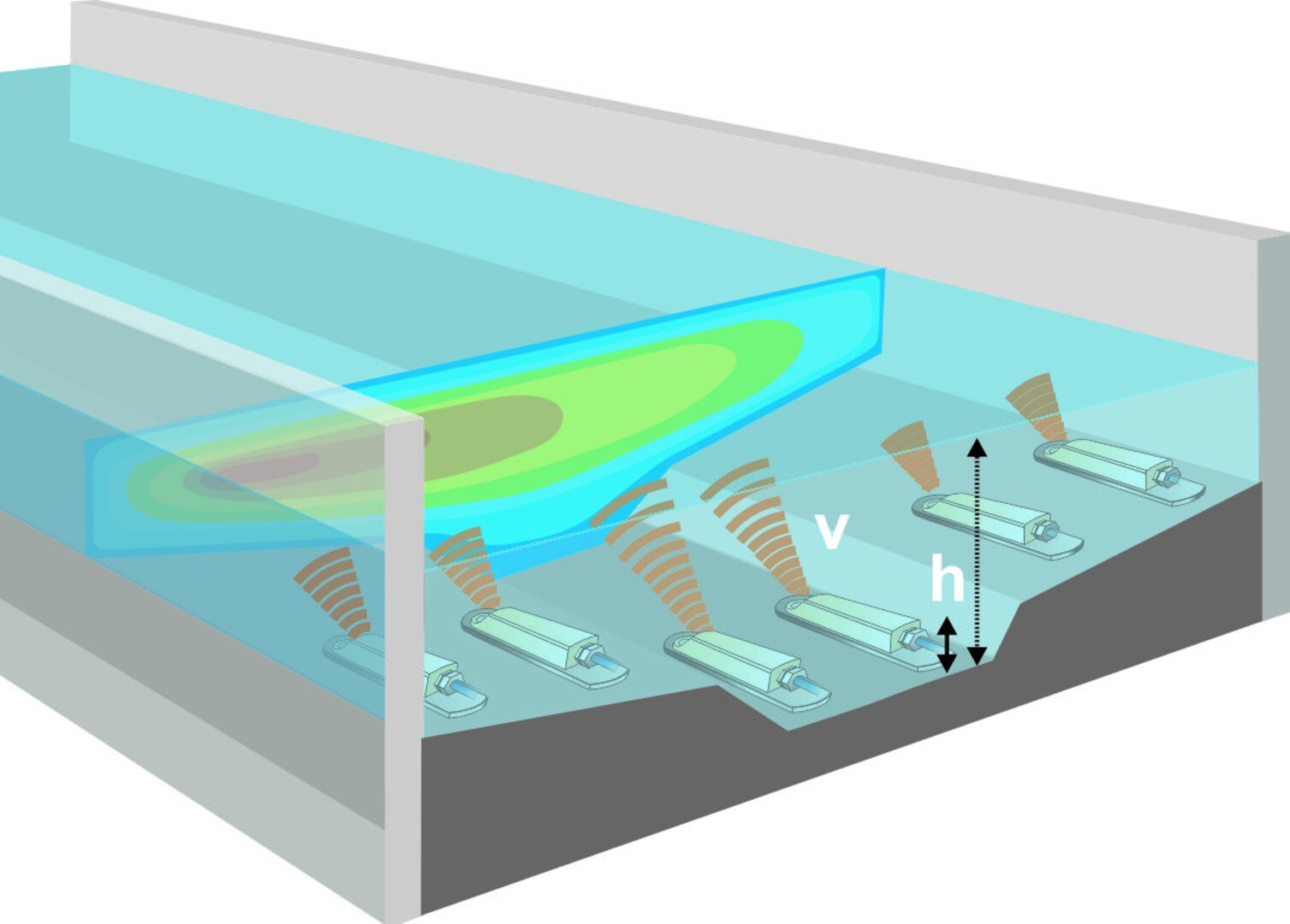

  • Two wedge sensors installed on the bottom of each of the dry weather flumes, as well as the left and right berm, reliably detect the heavily distorted velocity distribution within the special profile.

Advantages

  • Scientifically proven hydraulic models which have been implemented in the transmitter ensure high accuracy.
  • The cross correlation method and the flow- optimised sensors guarantee high resistance to soiling.
