Ex-Interface / Multiplexer

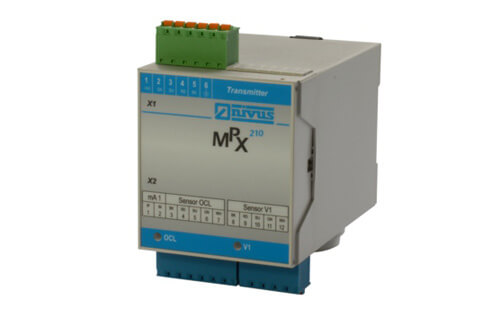

Multiplexer MPX

Part No. MPX0

for NivuFlow Transmitters

Intelligent multiplexer for connection of correlation sensors

Intelligent multiplexer for bundled signal transmission from correlation sensors. The unit is suitable for connection of more than three flow velocity sensors to NivuFlow measurement systems as well.

Connectable Sensors

Flow velocity sensors

  • POA-V2
  • CS2
  • Mini sensors via electronic box

Level sensors

  • OCL-L1
  • NivuBar
  • NivuCompact
  • Serie i
Common
Power supply 12 V DC,
max. power consumption 9 W (typ. 7 W),
supplied by transmitter
Protection IP20
Inputs 1 (optional 2) analog 4-20 mA loop-powered sensor connection Ex ib Gb IIB, one of them HART compatible
2 (optional 4) x sensor connection Ex ib Gb IIB with RS485 interface
Outputs RS 485 to transmitter

Specifications subject to change.

Technical Description Multiplexer MPX

Intelligent multiplexer for connection of correlation sensors - for NivuFlow 750 transmitter

EU Declaration of Conformity Multiplexer for Sensors in Non-Ex Area
