Open Channel Flow Measurement

Wastewater Treatment Plant - Intake Area


Application

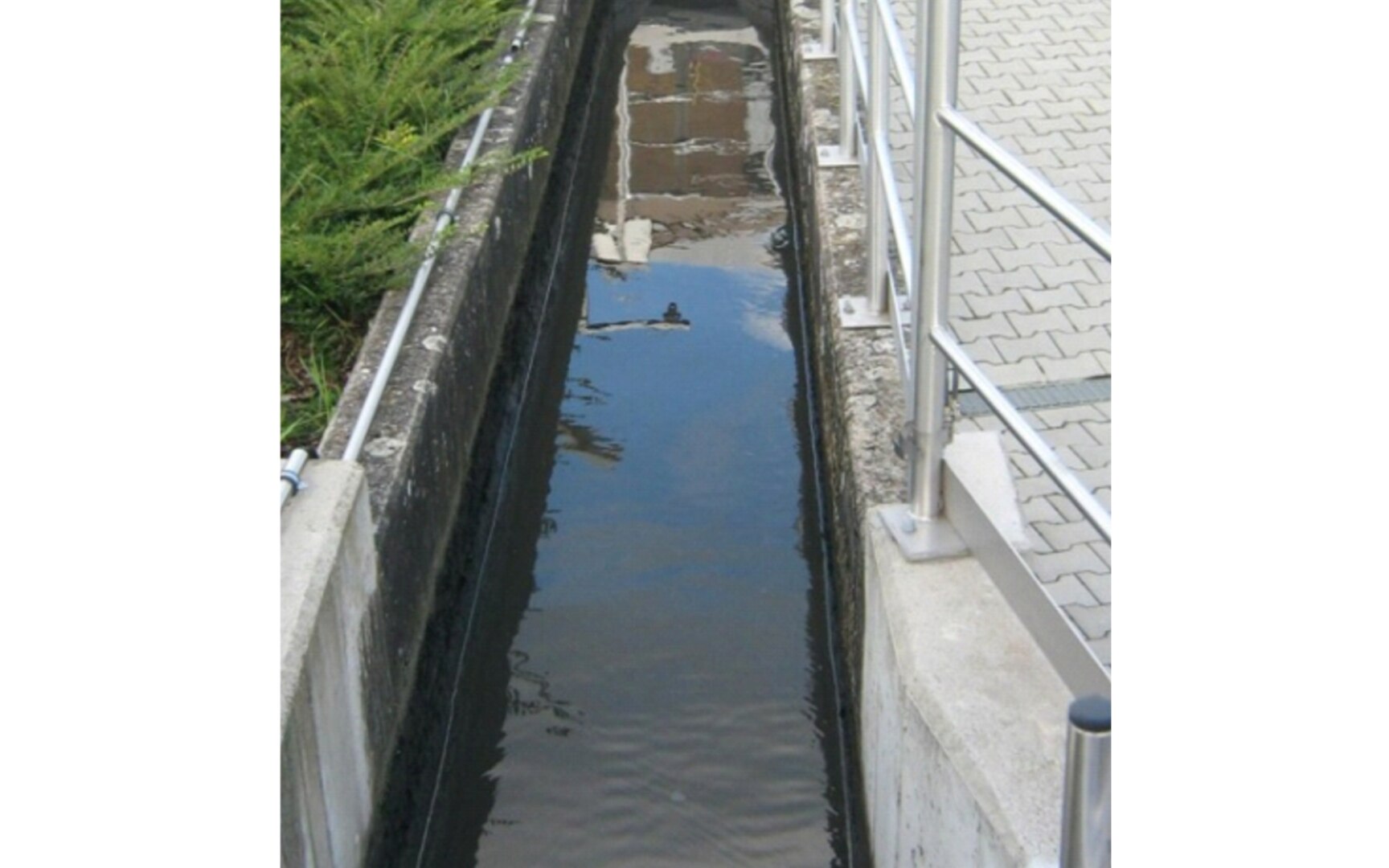

  • Rectangular channel made of concrete, width 1m
  • Partially filled
  • Strong fluctuation between daily and nightly inflow



Definition of tasks

  • Continuous flow rate measurement in a WWTP intake area
  • Additional external level measurement shall be avoided
  • Cost-efficient, for monitoring only
  • No high accuracy is required
  • Quick and easy sensor mounting

Solution

  • The flow measurement system Type OCM F operates based on the Doppler principle.
  • A wedge-shaped flow velocity sensor has been installed in the center of the rectangular channel.

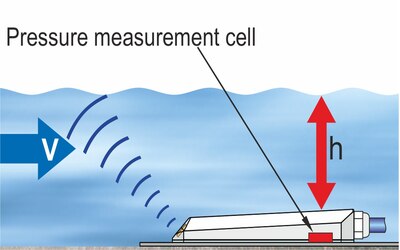

  • The flow velocity sensor has been equipped with a pressure measurement cell to avoid the need for an additional external level measurement.

Advantages

  • Easy, quick and robust installation
  • Cost-effective measurement
  • Velocity and level measurement in one sensor
