Mounting Accessories Flow Sensors

Pipe Sensor Accessories

Part No. ZUB0

quick and easy installation of pipe sensors

The mounting accessories allow the quick and easy installation of pipe sensors on various pipes. All components are made of high-quality stainless steel 1.4571.

  • Quick and easy installation of pipe sensors
  • Pipelines do not need to be drained for installation
  • Solid and robust construction made of stainless steel 1.4571
  • Includes all fastening materials

The mounting accessories allow the quick and easy installation of pipe sensors on various pipes. Depending on the requirements the accessories comprise or do not comprise welding works on the pipe. The pipeline does not have to be drained for sensor installation. Sensors can be removed from the full pipeline easily by using the ball valve. The solid high-quality accessories made of stainless steel 1.4571 and plastic are suitable for indoor as well as outdoor installation. All accessories are supplied including the according fastening materials.



Overview

Tapping Saddle

ZUB0ABS

For installation of 1 ½" pipe sensors without welding

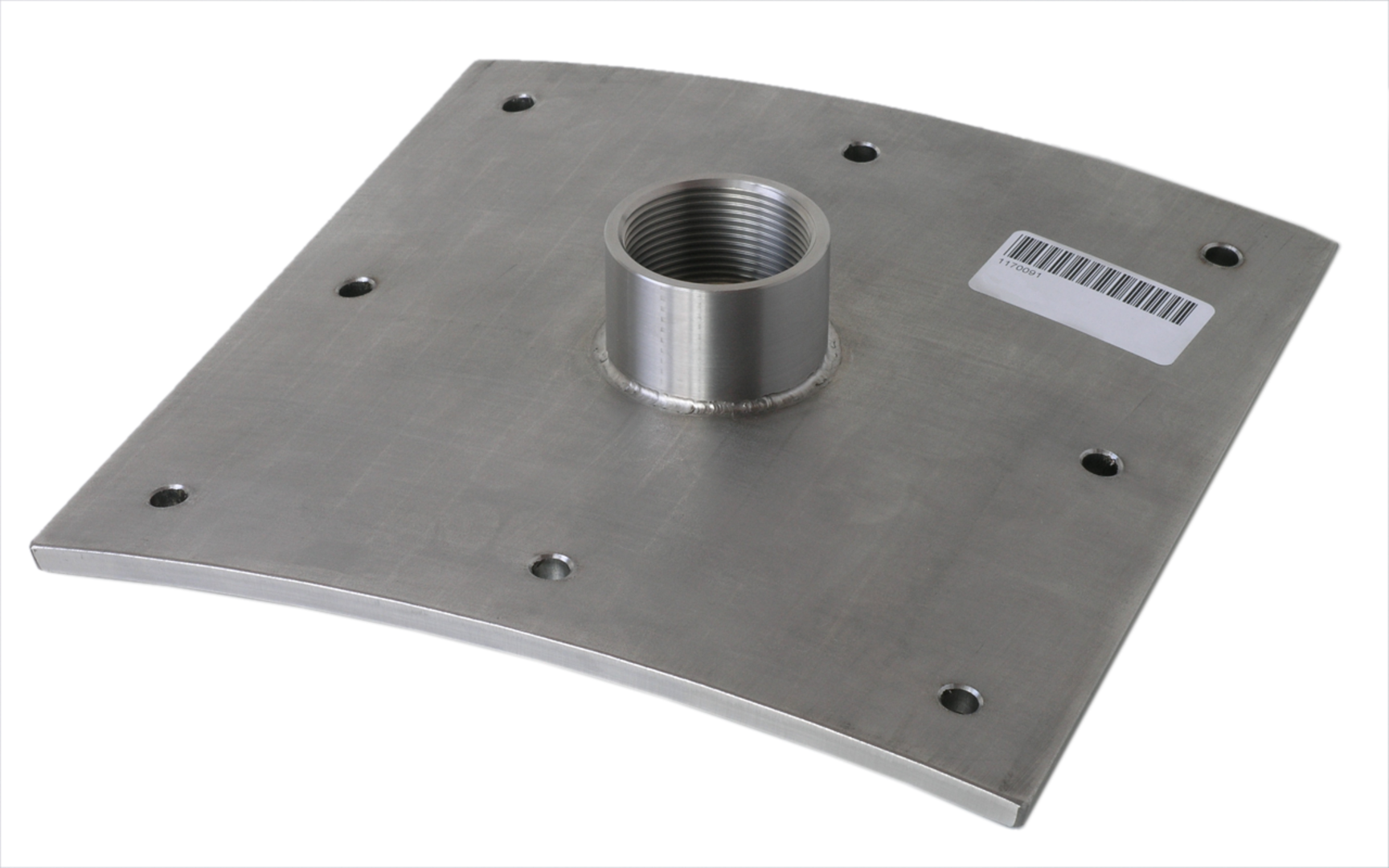

Mounting Plates

ZUB0ABP15

For installation of 1 ½" pipe sensors on concrete surfaces or in pipes made of HDPE starting at 8 cm wall strength

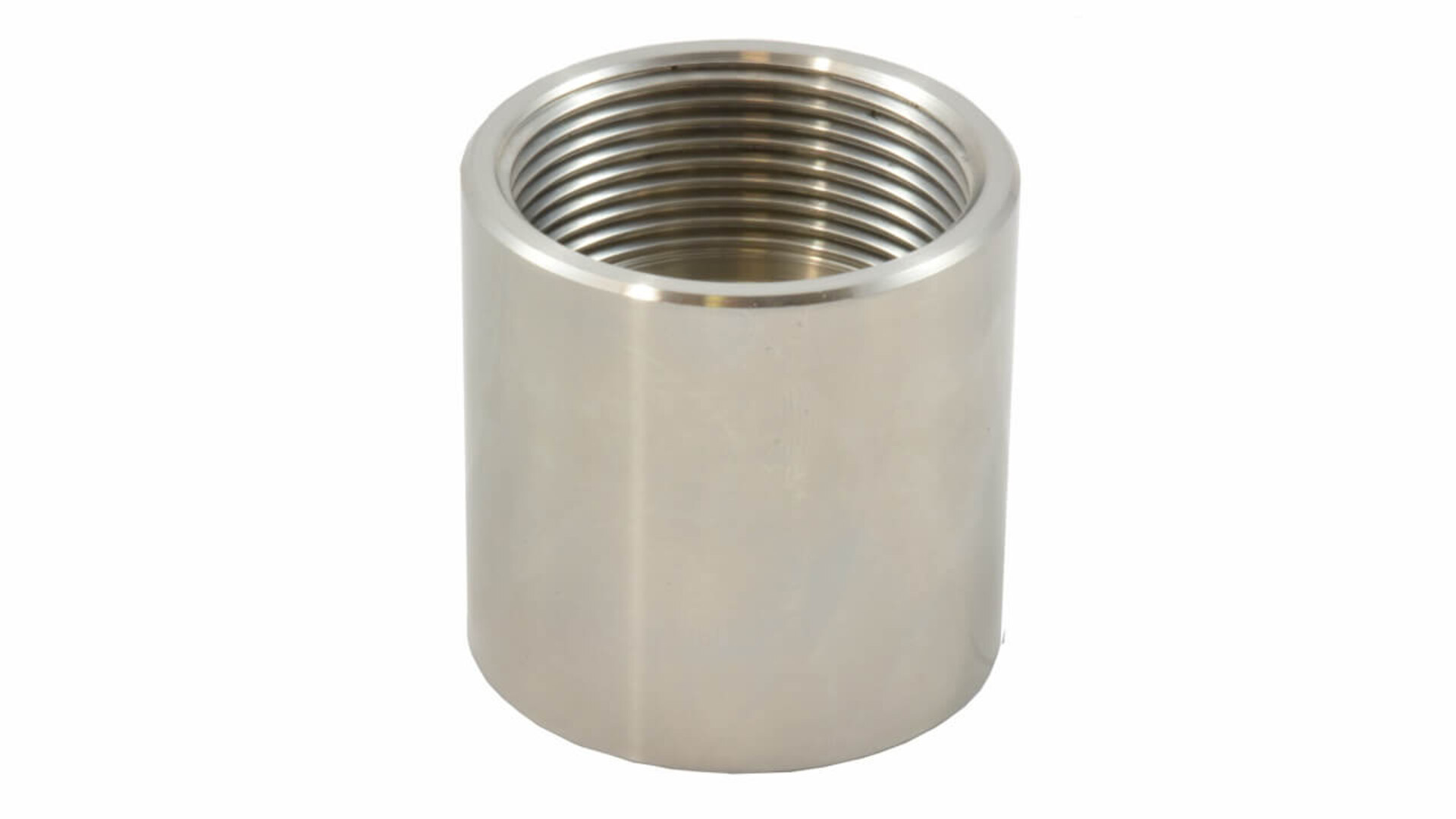

Welding Nozzle

ZUB0STU

Welding nozzle for installation of 1 ½" pipe sensors on pipes made of steel or stainless steel, material: stainless steel 1.4571 (AISI 316 Ti)

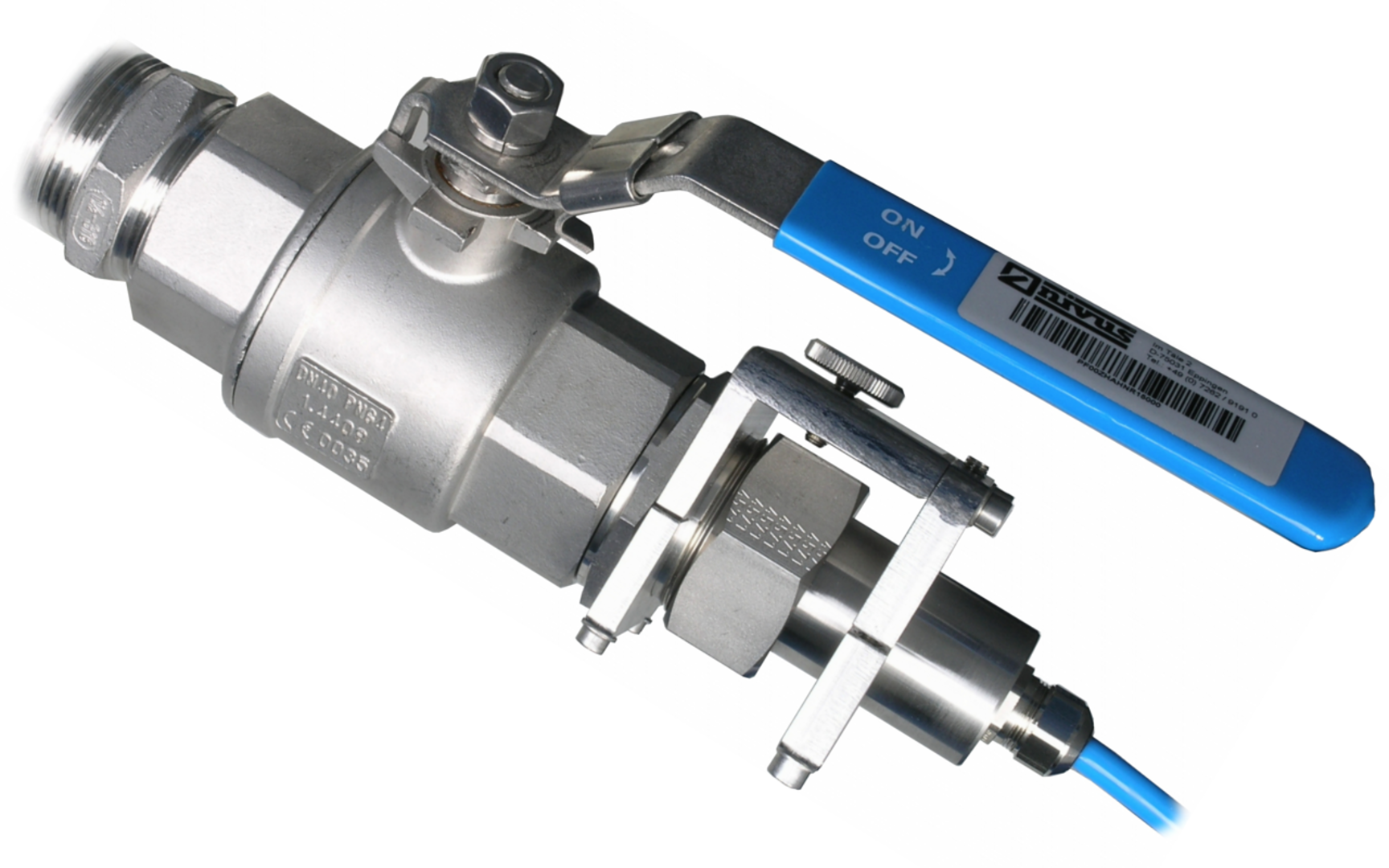

Stop Ball Valve

ZUB0HAHNR15

To remove pipe sensors from pressureless lines for flow velocity sensors with 1½" screw joint



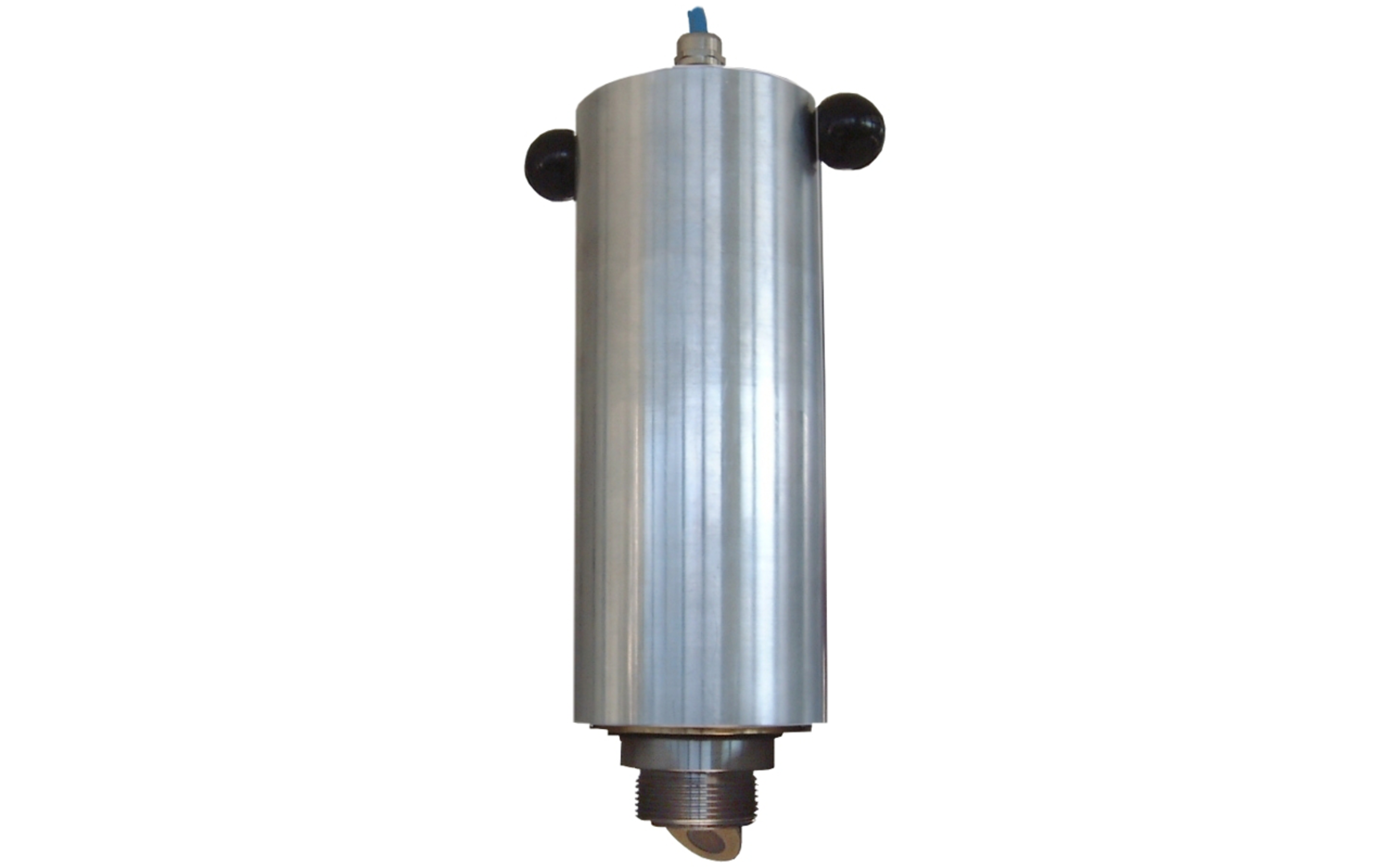

Extraction Tool

ZUB0AA

Extraction tool to manually insert and retract 1 1/2" pipe sensors under process conditions (not for removal)

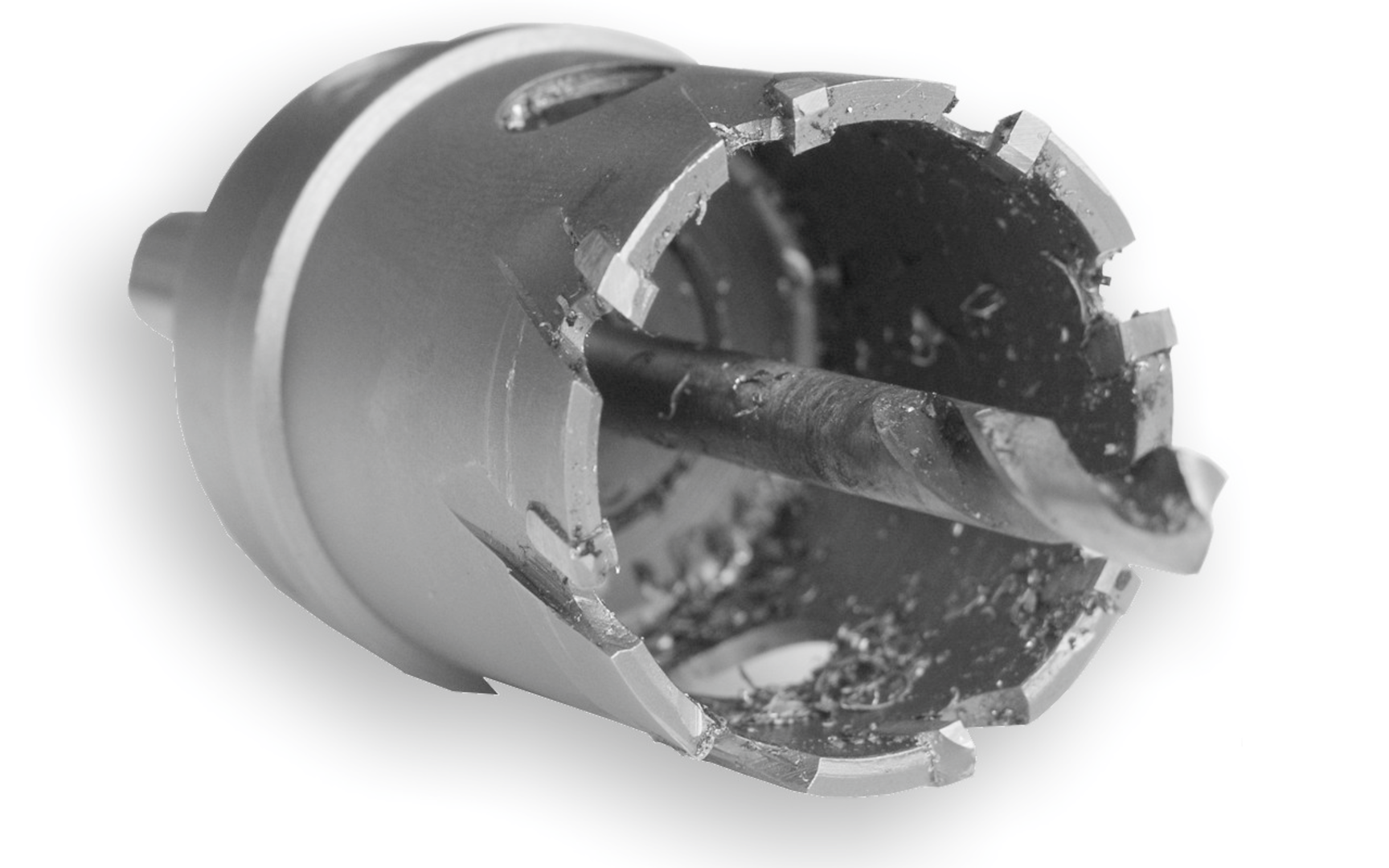

Drill Bit 38

ZUB0BOHRK38

For drilling without ball valve



Drill Bit 36

ZUB0BOHRK36

For drilling through ball valve

Extension

ZUB0VER

For drilling through ball valve







Drill Bit XL

ZUB0BOHRK36XL

For very thick pipe walls up to 100 mm





High-Performance Cutting Paste

ZUB0SCHNEID

High-performance cutting paste for drill bits







Technical Data
Tapping Saddle
max. pressure

4 bar

Connection

with connection piece (internal thread 1 1/2" to DIN 2999)

Installation
  • One-piece up to DN 350
  • 2 clamping rings + sealing and mounting plate up to DN 550
  • 4 clamping rings + sealing and mounting plate from DN 600
Assembly area

In stages from DN 100 - DN 1000

Material
  • Stainless steel 1.4301 (V2A)
  • Seal: NBR

Specifications subject to change.

Extraction Tool
max. pressure

4 bar

Connection

R 1½" external thread

Material

AlMg alloy, brass

Weight

approx. 5.5 kg

max. operational length

approx. 150 m

Outer diameter

100 mm

Total length of fitting

290 mm

Specifications subject to change.

Downloads

Data Sheet Tapping Saddle for Pipe Sensors

Tapping saddle for pipe sensors for quick and reliable installation

Data Sheet Extraction Tool

Easy retraction of pipe sensor under process conditions

Drawing Pipe Sensor with Stop Ball Valve

Dimensions of installed pipe sensor including stop ball valve
