Mounting Accessories Transmitter
Transmitter Accessories
Part No. ZMS0for installation and protection of transmitters
The mounting accessories allow the quick and easy installation of transmitters. The solid high-quality accessories made of stainless steel 1.4301 are suitable for indoor and outdoor installation. Transmitters can be simply installed in close vicinity to measurement places. Weatherproof covers protect the transmitters from influences due to weathering in outdoor areas. All accessories are supplied including the according fastening materials.

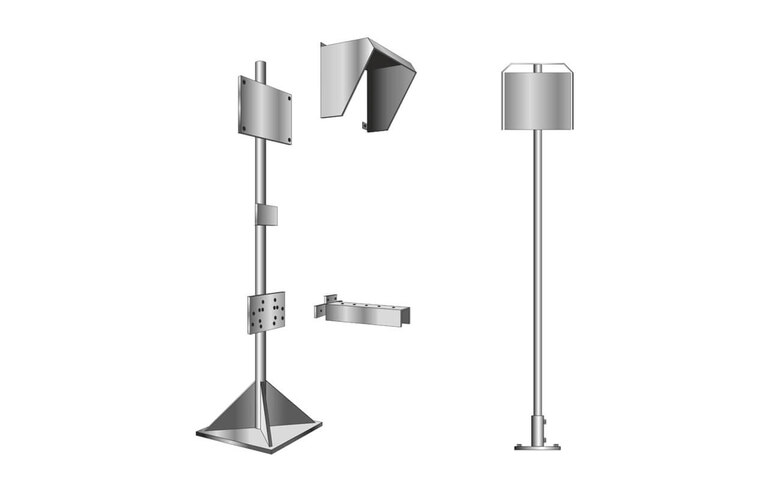

![[Translate to English:] Modulares Montagezubehör für Messumformer zur einfachen Montage](/fileadmin/_processed_/9/4/csm_Montage-Messumformer-1_935fc124ec.png "[Translate to English:] Modulares Montagezubehör für Messumformer zur einfachen Montage")

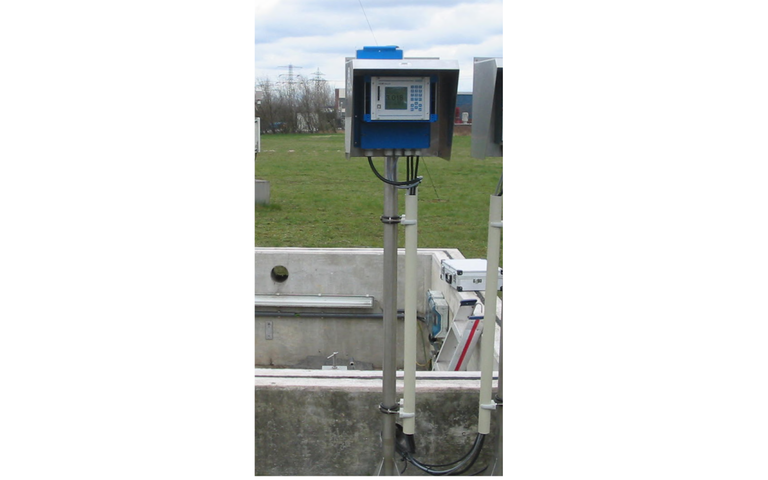

![[Translate to English:] Modulares Montagezubehör – Wetterschutz und Montagehilfe](/fileadmin/_processed_/8/2/csm_Montage-Messumformer-2_daa9d901da.png "[Translate to English:] Modulares Montagezubehör – Wetterschutz und Montagehilfe")
![[Translate to English:] Modulares Montagezubehör für Messumformer zur einfachen Montage](/fileadmin/_processed_/9/4/csm_Montage-Messumformer-1_9e94b0c3fd.png "[Translate to English:] Modulares Montagezubehör für Messumformer zur einfachen Montage")
![[Translate to English:] Modulares Montagezubehör – Wetterschutz und Montagehilfe](/fileadmin/_processed_/8/2/csm_Montage-Messumformer-2_b6dbc82f02.png "[Translate to English:] Modulares Montagezubehör – Wetterschutz und Montagehilfe")
Description
- Easy installation and protection of transmitters
- Solid and robust construction made of stainless steel 1.4301
- Includes all fastening materials
The mounting accessories allow the quick and easy installation of transmitters. The solid high-quality accessories made of stainless steel 1.4301 are suitable for indoor and outdoor installation. Transmitters can be simply installed in close vicinity to measurement places. Weatherproof covers protect the transmitters from influences due to weathering in outdoor areas. All accessories are supplied including the according fastening materials.
Overview
| Designation | Part-No. | Description |
|---|---|---|
| Mounting stand 1700 mm | ZMS0151 | 1½", Material: 1.4301 (V2A), 1700 mm height, incl. assembly material and plastic cap |
| Mounting stand 650 mm | ZMS0155 | 1½", Material: 1.4301 (V2A), 1700 mm height, incl. assembly material and plastic cap |
| Assembly plate small | ZMS0160 | For mounting stand ZMS 151/155 Material: 1.4301 (V2A), for OCM Pro, NivuSonic or NivuChannel incl. assembly material |
| Assembly plate large | ZMS0161 | For mounting stand ZMS 151/155 Material: 1.4301 (V2A), for OCM Pro, NivuSonic or NivuChannel incl. assembly material |
| Assembly plate NivuFlow | ZMS0163 | For mounting stand ZMS 151/155 Material: 1.4301 (V2A), for NivuFlow with outdoor housing incl. assembly material |
| Supporting plate | ZMS0170 | For mounting stand ZMS 151/155 Material: 1.4301 (V2A), for assembly of wall mounting angle ZMS 108 incl. assembly material |
| Mounting plate | ZMS0175 | For mounting stand ZMS 151/155 Material: 1.4301 (V2A), for overvoltage protection housing incl. assembly material |
| Wheater protective roof | ZMS0180 | For Assembly plate ZMS 160 Material: 1.4301 (V2A), incl. assembly material |
| Wheater protective roof | ZMS0181 | For Assembly plate ZMS 161 Material: 1.4301 (V2A), incl. assembly material |
| Wheater protective roof | ZMS0183 | For Assembly plate ZMS 163 or direct wall mounting Material: 1.4301 (V2A), incl. assembly material |
| Column tube 1700 mm | ZMS00L17 | For base plate ZMS0B000 |
| Column tube 500 mm | ZMS0L05 | For base plate ZMS0B000 |
| Wheater protective roof | ZMS0000000S1 | With DIN rail and bracket |
| Base plate | ZMS0B000 | For column tubes |
