Level Sensors

Ri-Series Sensors

Part No. RI

2-wire radar sensor for level measure­ments

2-wire level sensors with FMCW radar technology for measurement of critical level applications, with Ex-Certification.

Benefits

  • Intelligent 2-wire FMCW radar for direct connection to following systems
  • Commissioning with smartphone, tablet or PC via web-based user interface
  • Narrow beam angle with only 6 degrees
  • LED status indication for installation support and function messages
  • ATEX approval for Zone 0/1



Reliable and robust

The Ri-Series 2-wire sensors with FMCW radar technology provide ac­curate monitoring of liquids in standard and critical measurement applications, ensure absolute operational reliability and minimise costs through very low maintenance and service requirements. Highest reliability for level measure­ments under the most difficult environ­mental conditions due to very narrow beam angle and protection class IP68.

Typical Applications

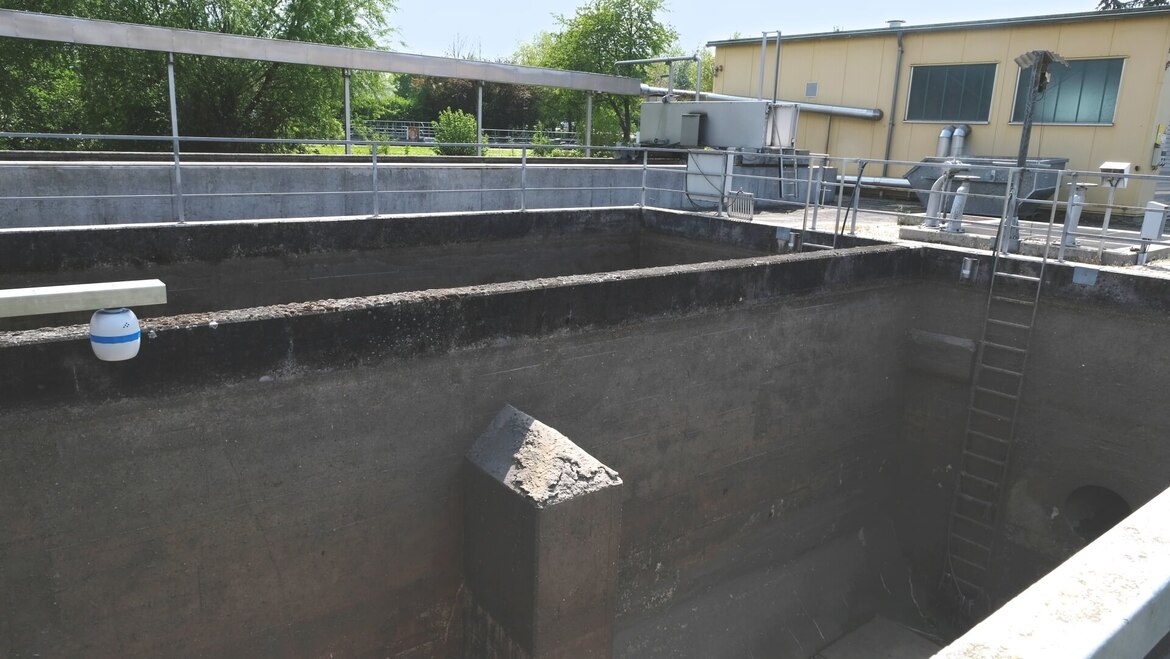

Wastewater

Stormwater overflow tanks and sewer storage spaces, sedimentation tanks, pump stations, screening systems, flow measurements, volume measurements in tanks, container monitoring, irrigation systems


Drinking Water

Tank level measurements, water treatment, seawater desalination plants, level measurements


Flood Protection

Stormwater retention basins, levels with remote data transmission, surface water bodies


Power Generation

Cooling water circuits, hydropower plants


Industry

Containers and basins of any kind

Benefits FMCW Radar Technology

  • No influence by temperature fluc­tuations, wind, pressure or super­imposed gases
  • For applications with foam surface or vortex formation
  • Continuous surface detection

Unique and secure web-based user interface via Bluetooth

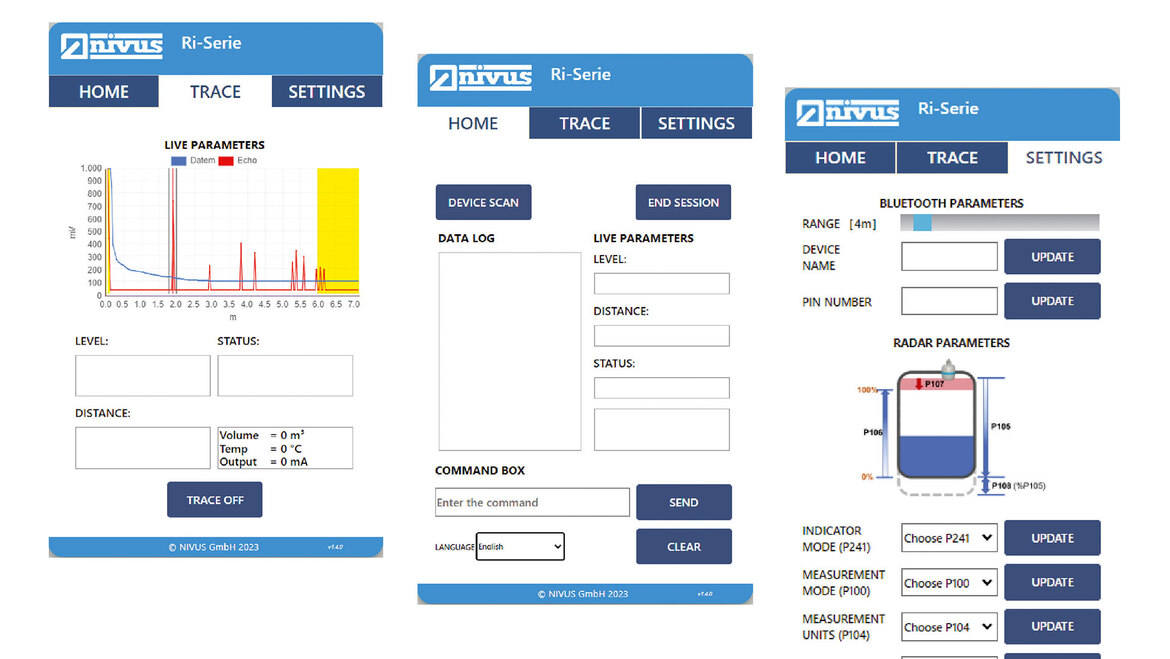

With a web-based user interface, the Ri sensor offers a simple and conven­ient way to change parameters, dis­play echo curves and change the Bluetooth range. This web app is accessible via any browser on any operating system (Windows, Android or iOS). Compared to a conventional app, no software and associated up­dates need to be installed.

Link to the user-interface: https://www.nivus.de/ri-app/

DTM via HART

A HART device DTM (Device Type Manager) is also available for the sensors, with which parameterisation is possible via the manufacturer-independent PACTware adjustment software.



PC Software via HART

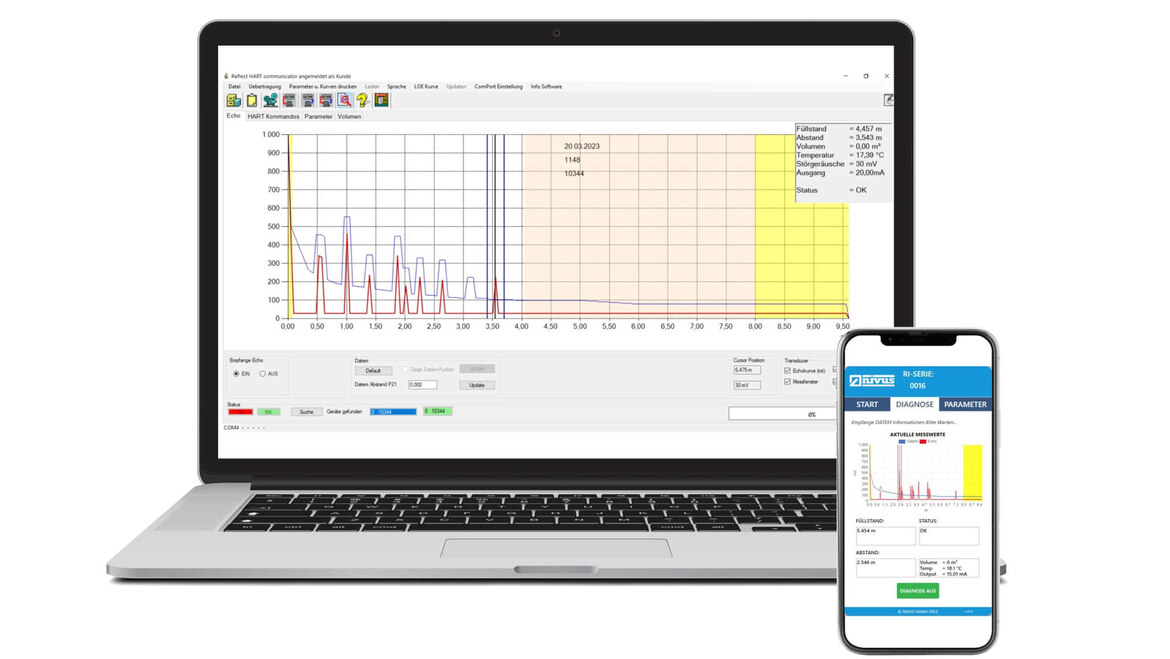

Manual false echo blanking can be carried out via PC software if required. In addition, all important parameters for measurement range adjustment can be optimised and documented.

LED Indicator

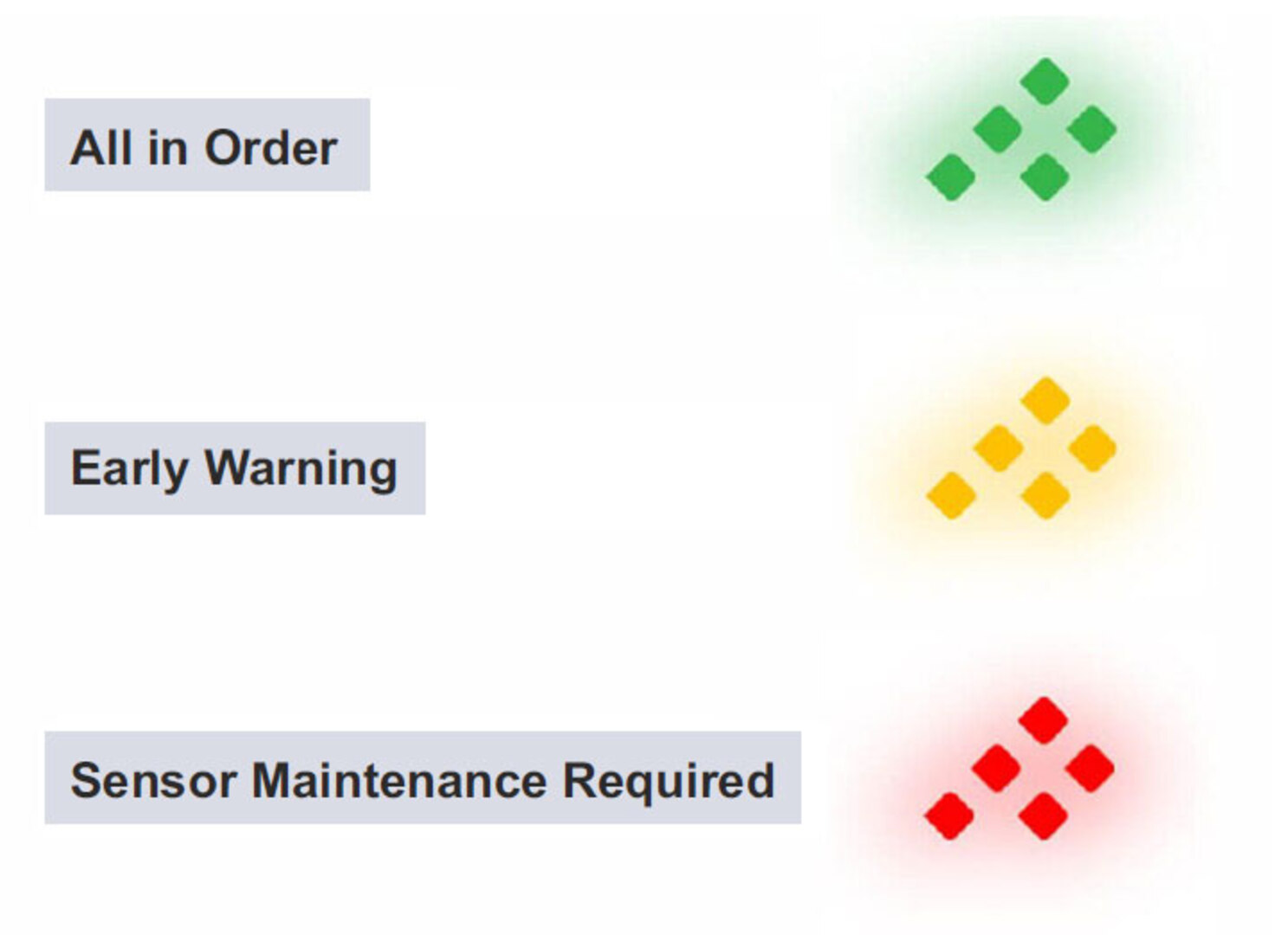

During installation, the LEDs show at which mounting position the sensor gets the best signal. This allows for a comfortable and easy installation of the sensor. In measurement mode, the LEDs also show whether the meas­­­ure­ment is working properly.

Mounting is easy via the 1" BSP/NPT thread on the back. The sensors are also optionally available with a 1" front thread made of PVDF.



Common
Measurement principle FMCW
Measurement range 75 mm up to 8 m or up to 20 m
Measurement frequency V-Band (63 GHz)
Beam angle
Power supply 12 - 28 V DC
Power consumption 3.8-22 mA, resolution 1μA, Max Start-up Current: 20 mA
Startup time Cold boot = 10 seconds
Warm boot = 5 seconds
Housing Material Valox
Process connection Rear 1-inch BSP / NPT
Optional: Front 1.5-inch BSP / NPT
Protection IP68 / NEMA 6P
Ex-Approval Zones 0, 1, 2: Ex II 1G Exia IIC T4 Ga, Tamb.= -40°C to +80°C.
Zones 20, 21, 22 : Ex II 1D Exia IIIC T100°C Da, Tamb.= -40°C to +80°C.
Cable lengths Standard: 5 m, 10 m, 20 m, 30 m, 50 m or 100 m (16.4 ft, 32.8 ft, 65.5 ft, 98.4 ft, 164 ft or 328 ft)
Outputs 4-20 mA, HART with DTM
Communication Encrypted Bluetooth with mobile interface, Wireless Range 4 - 40 m (13.1 ft - 31.2 ft / User Configurable )
Display Quad-color lights with tilt sensor
Weight 1,5 kg
Resolution 1 mm
Accuracy 2 mm
