Flow Sensors
POA Correlation Pipe Sensor
Part No. POA-V2XXRMedium measurement range for levels up to ca. 1m
Cross correlation sensors for flow velocity and level detection in part filled and full pipes and channels. For installation in pipes
![[Translate to English:] POA-Rohrsensor für die Durchflussmessung im Abwasser](/fileadmin/_processed_/c/7/csm_Flow-SensorPOA-pipe-MCerts_c08390dde5.jpg "[Translate to English:] POA-Rohrsensor Kreuzkorrelation-Durchflussmessung im Abwasser")
![[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit](/fileadmin/_processed_/f/7/csm_POA-Pipe-sensor-3_b643f62ab7.png "[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit für hochgenaue Durchflussmessung")
![[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation](/fileadmin/_processed_/9/1/csm_Cross-Correlation-Priniciple-Pipe_9521e14942.png "[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation")
![[Translate to English:] Durchflussmessung - Installationsvergleich](/fileadmin/_processed_/8/0/csm_Durchflussmessung-Rohrsensor_596ae450f7.jpg "[Translate to English:] Installation Durchflussmessung - Vergleich bei DN 800")
![[Translate to English:] POA-Rohrsensor für die Durchflussmessung im Abwasser](/fileadmin/_processed_/c/7/csm_Flow-SensorPOA-pipe-MCerts_3d326f3b5d.jpg "[Translate to English:] POA-Rohrsensor Kreuzkorrelation-Durchflussmessung im Abwasser")
![[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit](/fileadmin/_processed_/f/7/csm_POA-Pipe-sensor-3_e7e5e684a0.png "[Translate to English:] POA-Rohrsensor mit Verlängerungseinheit für hochgenaue Durchflussmessung")
![[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation](/fileadmin/_processed_/9/1/csm_Cross-Correlation-Priniciple-Pipe_8b0e2b98b8.png "[Translate to English:] Durchflussmessung Ultraschall Kreuzkorrelation")
![[Translate to English:] Durchflussmessung - Installationsvergleich](/fileadmin/_processed_/8/0/csm_Durchflussmessung-Rohrsensor_b7a18d158d.jpg "[Translate to English:] Installation Durchflussmessung - Vergleich bei DN 800")
- For high-accurate flow measurement of ultrasonic cross correlation method
- Interference-free connection over long distances through digital signal transmission
- Cables can be extended without any problems using standard cables
- Absolutely stable zero point and drift-free
- Measurement in heavily polluted and abrasive media
- Easy installation without additional constructions and perfectly matched mounting accessories
- Installation under process conditions possible
- Suitable for all channel cross sections
POA flow velocity sensors are suitable for continuous measurement of slight to heavily polluted media.
The pipe-shaped sensors are designed for installation in pipes from the outside using a nozzle. Combined with transmitter types such as NivuFlow 750 and an external level measurement the result is a complete flow measurement system.
Typical applications for POA pipe sensors
- Stormwater treatment plants: flow measurements and control of the discharge to the WWTP
- Wastewater treatment plants: intake, discharge, activated sludge tank intakes, return sludge, recirculation, surplus sludge, digester discharge and flocculant dosage
- Direct discharge control, infiltration (extraneous water) or leakage detection
- Industrial wastewater networks
- and many more
| General | |
|---|---|
| Measurement principle | Ultrasonic Cross Correlation with digital pattern detection (flow velocity) Ultrasonic transit time (level measurement) |
| Sensor types | v-sensor with T-compensation v-sensor with T-compensation and h measurement (water-ultrasound) |
| Ex-Approval | II 2 G Ex ib T4 Gb (ATEX) Ex ib IIB T4 Gb (IECEX) |
| Operating temperature | -20 °C to +50 °C -20 °C to +40 °C if using the sensors in Ex Zone 1 |
| Storage temperature | -30 °C to +70 °C |
| Operating pressure | max. 4 bar |
| Cable lengths | 10/15/20/30/50/100 m pre-configured, can be extended upon request |
| Cable types | LiYC11Y 2 x 1.5 + 1 x 2 x 0.34 |
| Outside cable diameter | 8,4 mm ±0,25 mm |
| Sensor connection | Cable end pre-configured for connection to NFP and OCM CF Cable end with plug for connection to PCM 4 and PCM Pro |
| Medium-contacting materials | Polyurethane, stainless steel 1.4571, PPO GF30, PTFE Optional: sensor resistant to chemicals made of PEEK, sleeve made of Hastelloy C-276; cable with FEP coating |
| Flow velocity measurement | |
| Measurement range | -100 cm/s to +600 cm/s |
| Number of scan layers | max. 16 |
| Measurement uncertainty | for 0.05≤|V|≤0.5 m/s: E_v=0.5/|V| [%] |
| Zero point drift | absolutely stable zero point |
| Beam angle | ±5 degrees |
| Level measurement water-ultrasonic sensor | |
| Measurement range | 0.05 to 200 cm |
| Zero point drift | Absolutely stable zero point |
| Measurement uncertainty | for 0.05≤|V|≤0.5 m/s: E_v=0.5/|V| [%] for |V|>0,5 m/s: E_v=1 % |
| Temperature measurement | |
| Measurement range | -20 °C to +60 °C |
| Measurement uncertainty | ±0.5 K |
Specifications subject to change.
Technical Instructions Correlation Sensors
Technical instructions for correlation sensors and external electronic box
Installation Instruction for Correlation and Doppler Sensors
Installation instruction for save installation
EC type examination certificate sensor type POA
EC type examination certificate sensor type POA incl. supplement

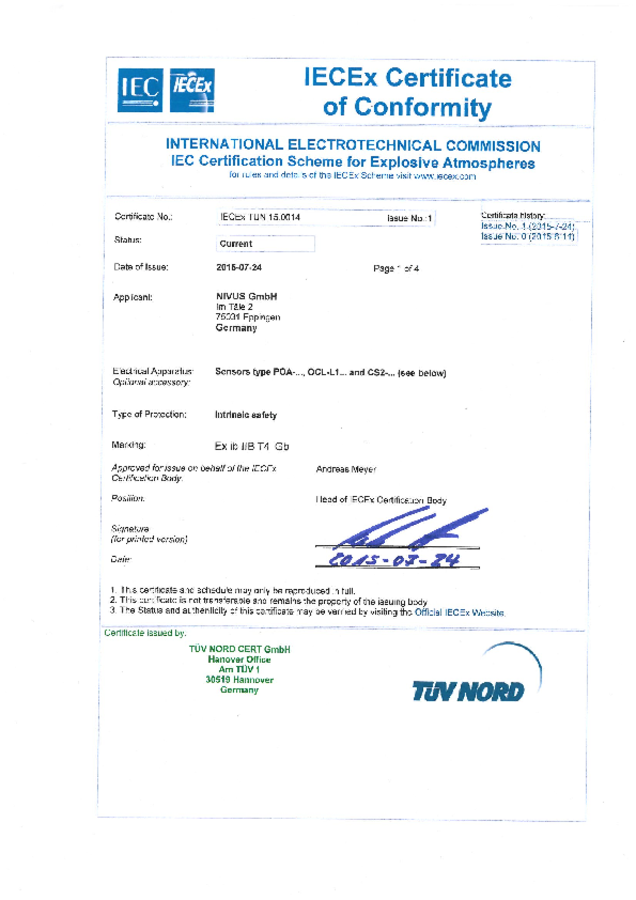

IECEx Certificate of Conformity
