Ex-Interface / Multiplexer

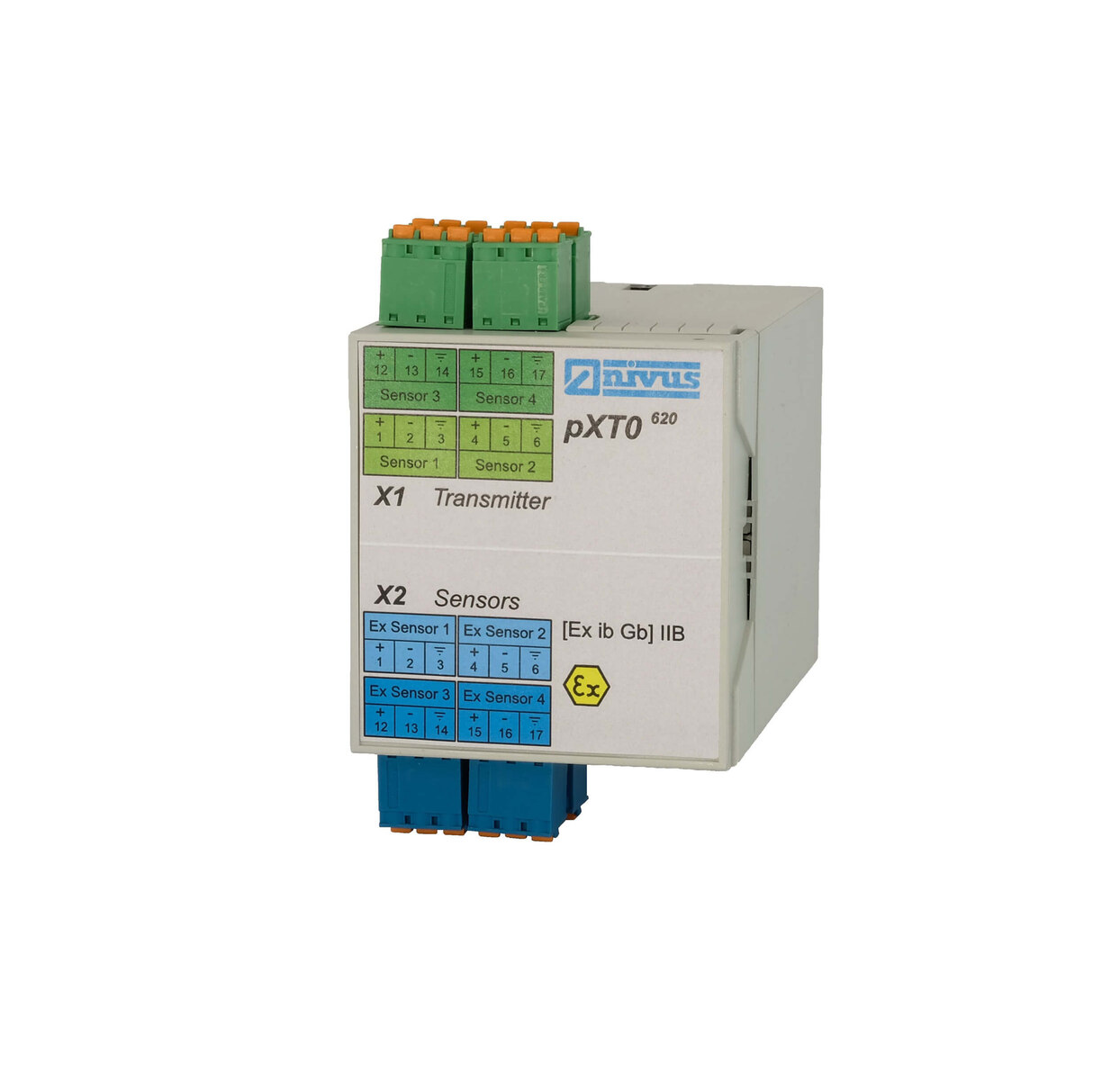

Ex Separator Module pXT0 620
Part No. PXT0for NivuFlow 6xx Transmitters
Passive Ex separation interface for Ex-proof connection of transit time sensors
Passive Ex seperation interface for the sensor connection in Ex zone 1. For the measuring with up to two measurement paths you can connect up to two sensor pairs.
Connectable Ex-Sensors
Flow velocity sensors
- NIC
- NIS
- NIS0
- NOS
Technical Data
| Common | |
|---|---|
| Max. humidity | 95 %, non-condensing |
| Storage temperature | -20°C to 85 °C |
| Operating temperature | -20 °C to +50 °C |
| Outputs | Up to two measurement paths (up to 4 passive sensors) transit time difference measurement method |
| Ex-Approval | ATEX: TÜV14ATEX142076 IECEx: TUN14.0014; II (2)G [Ex ib Gb] IIB |
| Inputs | Up to two measurement paths (up to 4 passive sensors) transit time difference measurement method |
| Protection | IP20 |
| Power supply | 12 V DC, max. power consumption 9 W (typ. 7 W), supplied by transmitter |
Specifications subject to change.
